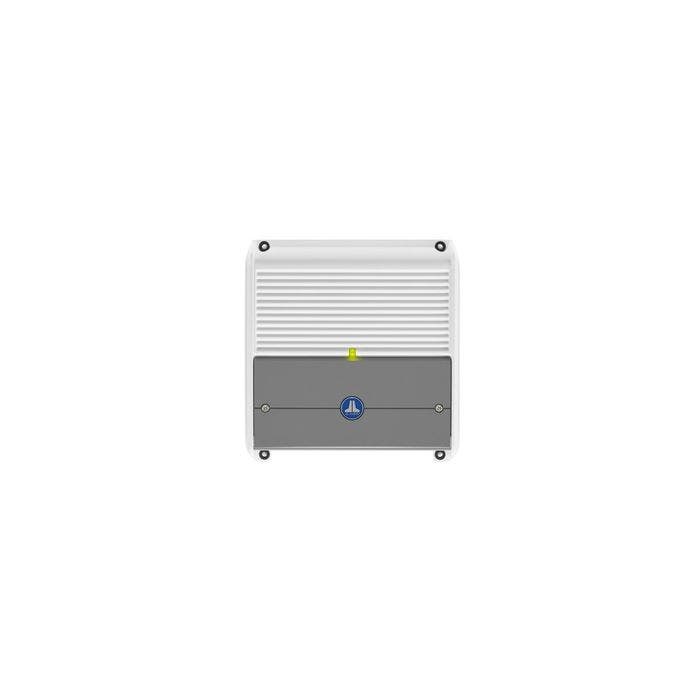

JL Audio M200/2 Nex D Marine Car Motorcycle Harley Bagger 200 Watt 2 Channel Amp

$499.99
Only 2 left
SKU
JL-M200/2
JL Audio M200/2 Class D 2-Channel M Series Full-Range Marine Amplifier Features: M Series 2-Channel Class D Full-Range Amplifier RMS Power Rating (14.4V): 4 ohms: 75 watts x 2 chan.

JL Audio M200/2 Class D 2-Channel M Series Full-Range Marine Amplifier
Features:
M Series 2-Channel Class D Full-Range Amplifier
RMS Power Rating (14.4V):
4 ohms: 75 watts x 2 chan.
2 ohms: 100 watts x 2 chan.
Bridged, 8 ohms: 150 watts x 1 chan.
Bridged, 4 ohms: 200 watts x 1 chan.
RMS Power Rating (12.5V):
4 ohms: 60 watts x 2 chan.
2 ohms: 90 watts x 2 chan.
Bridged, 8 ohms: 120 watts x 1 chan.
Bridged, 4 ohms: 180 watts x 1 chan.
Unregulated MOSFET switching type power supply
NexD Ultra-High Speed Class D topology
Wired JL Audio HD-RLC remote level control sold separately
LED power (green) and protect (red/yellow) indicators
Independent input sensitivity controls
State-of-the-art microelectronic components
2/1 channel operation
Advanced Thermal Rollback System completely eliminates annoying thermal shut-down events
Studio-grade signal processing with fully variable crossover filters
Extruded aluminum alloy system setting security cover
Total amplifier efficiencies exceeding 80%
Noise-killing, highly flexible differential-balanced inputs
Preamp RCA outputs to daisy chain multiple amps
3-Way System Protection circuitry (thermal, overload, and speaker short protection)
Heavy duty compact unitary cast alloy heat sink for extreme heat dissipation
Silver-plated RCA level inputs
Silver-plated screw terminals
Input sensitivity:
Level: 100mV-4V
Variable high-pass filter (50-500 Hz, 12 dB/octave Butterworth)
Variable low-pass filter (50-500 Hz, 12 dB/octave Butterworth)
Damping factor: >150 @ 4 ohms per chan./ 50Hz
Frequency response: 12-22,000 Hz
Dimensions: 8-9/16"L x 7-1/8"W x 2-1/16"H
4-gauge power and ground wiring is required for installation.
