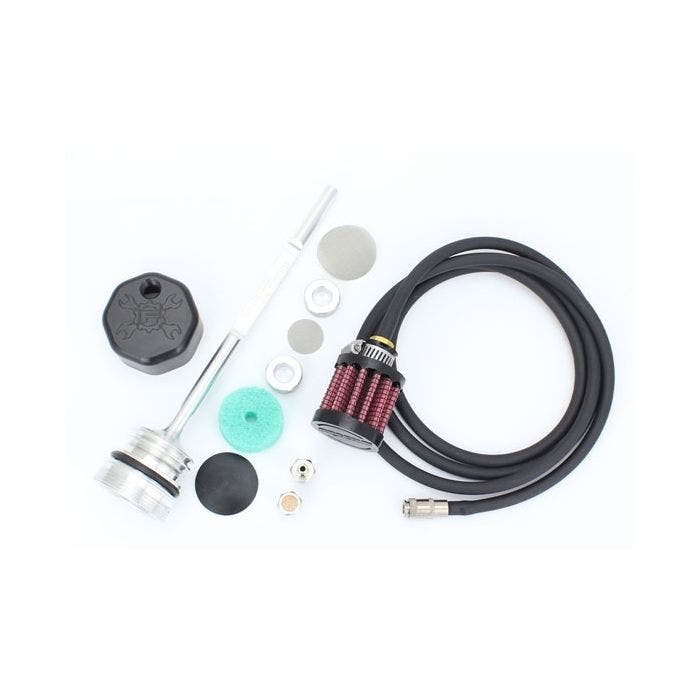

Feuling 3088 Black Aluminum Vented Oil Dipstick 17-Up Harley M8 Touring
- Screws into the factory oil fill spout as a stock replacement part on M-Eight baggers
- This breathing dipstick removes unwanted build-up of blow by, which is found in engines with excessive leakdown through the rings/cylinders (a common issue with large displacement big bore engines)
- Test results show a decrease in engine sump oil levels
- Dipstick vents excessive pressure from the oil tank through a breather system consisting of a filter element and umbrella valve
- Choose from two venting style options when installing the dipstick
- Option 1 is to use the 1/8" NPT breather vent fitting with internal porous filter element (this option gives a clean look; however it can produce an oil misting/residue out of the element on engines with excessive leakdown/blow by)
- Option 2 is to use a quick-disconnect coupler fitting with rubber hose and filter element (this option will run any excessive oil misting/residue through the line and into the filter element, but does requires disconnecting the fitting in order to check the oil)
- For option 2, Feuling recommends routing the line up the frame rail, up under the seat/abs area then back down along the right side frame rail and the filter element can fit cleanly between the engine/trans matting area on the inside of the lower right frame rail
- There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) or the bike upright and level (FHU)
- If reading the dipstick with the bike on the jiffy stand you will take your reading from the dimples labeled FHS (Full Hot Stand)
- When reading the dipstick with the bike upright and level you will take the reading from the dimples labeled FHU (Full Hot Upright)
- Available in polished or fade-resistant black
- Made in the U.S.A.
NOTE: This dipstick does get hot; use a glove when checking oil level.
NOTE: Feuling highly recommends staying off the rev limiter and running conventional oil in the M-Eight engines to help maintain ring seal and minimize blow by.
NOTE: It is important to get the correct hot oil level in your bike. Feuling recommends running the oil level 90%-99% full when hot.
NOTE: The oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.
Specs:
- Color/Finish: Black
- Material: Aluminum
- Product Name: Oil Dipstick
- Riding Style: Street
- Units: Each
Disclaimer: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. Not legal for sale or use on any EPA pollution controlled motor vehicle.
- Screws into the factory oil fill spout as a stock replacement part on M-Eight baggers
- This breathing dipstick removes unwanted build-up of blow by, which is found in engines with excessive leakdown through the rings/cylinders (a common issue with large displacement big bore engines)
- Test results show a decrease in engine sump oil levels
- Dipstick vents excessive pressure from the oil tank through a breather system consisting of a filter element and umbrella valve
- Choose from two venting style options when installing the dipstick
- Option 1 is to use the 1/8" NPT breather vent fitting with internal porous filter element (this option gives a clean look; however it can produce an oil misting/residue out of the element on engines with excessive leakdown/blow by)
- Option 2 is to use a quick-disconnect coupler fitting with rubber hose and filter element (this option will run any excessive oil misting/residue through the line and into the filter element, but does requires disconnecting the fitting in order to check the oil)
- For option 2, Feuling recommends routing the line up the frame rail, up under the seat/abs area then back down along the right side frame rail and the filter element can fit cleanly between the engine/trans matting area on the inside of the lower right frame rail
- There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) or the bike upright and level (FHU)
- If reading the dipstick with the bike on the jiffy stand you will take your reading from the dimples labeled FHS (Full Hot Stand)
- When reading the dipstick with the bike upright and level you will take the reading from the dimples labeled FHU (Full Hot Upright)
- Available in polished or fade-resistant black
- Made in the U.S.A.
NOTE: This dipstick does get hot; use a glove when checking oil level.
NOTE: Feuling highly recommends staying off the rev limiter and running conventional oil in the M-Eight engines to help maintain ring seal and minimize blow by.
NOTE: It is important to get the correct hot oil level in your bike. Feuling recommends running the oil level 90%-99% full when hot.
NOTE: The oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.
Specs:
- Color/Finish: Black
- Material: Aluminum
- Product Name: Oil Dipstick
- Riding Style: Street
- Units: Each
Disclaimer: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. Not legal for sale or use on any EPA pollution controlled motor vehicle.
| Brand | Feuling |
|---|---|
| Drag Part # | 0710-0260 |
| Manufacturer Part No. | 3088 |
| Fitment | 2017-Up Harley Davidson M8 Touring |
| Additional Notes | BI |
| Ships Within: | 24 Hrs |
2017-Up Harley Davidson M8 Touring
