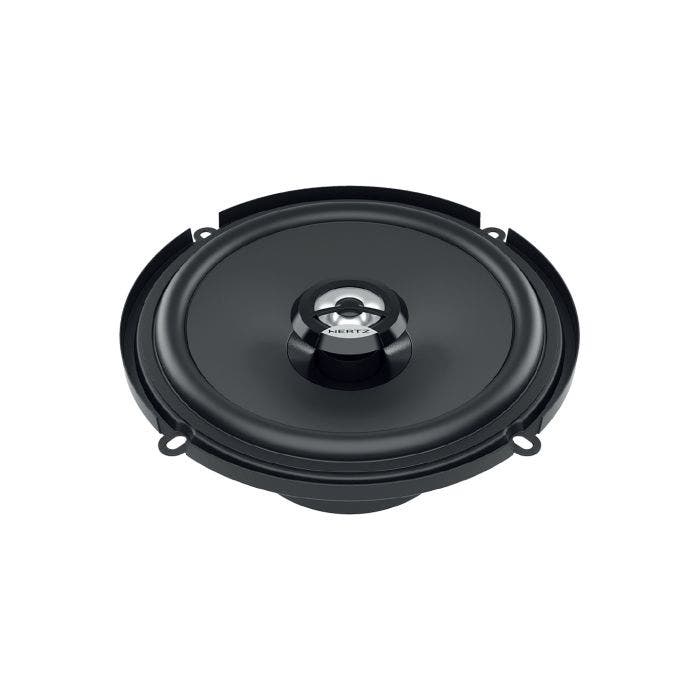

Hertz Dieci DCX 160.3 Coaxial 6" 4 Ohm 120W 2-Way Speaker Driver & Tweeter Pair
To meet all installation needs, without giving up on Hertz quality and performance, the Dieci coaxes were designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact. The new Hertz Dieci DCX 160.3 6” coaxial includes an adaptor ring designed for installation in GM and Honda models with 6” OEM speakers.
1. Large motor assembly for mobile voice coil control.
2. Pure copper voice coil, wound on conex former, for maximum lightness.
3. Water-repellent treated paper cone.
4. TPU surround, for wide excursion and resonance damping.
5. Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
6. DIN size basket protected by abrasion-proof dust paint.
7. Tin-plated, high current terminals.
8. Silver-plated lead wires for maximum reliability and conductivity.
9. Butyl rubber protective cover, against crashes and abrasions.
10. Epoxy glue for basket and motor system provides perfect coupling.
11. Low carbon content plates for maximum magnetic permeability and high heat dissipation.
12. Provided adaptor ring designed for installation in GM and Honda models with 6”.
To meet all installation needs, without giving up on Hertz quality and performance, the Dieci coaxes were designed with maniacal care to provide a linear frequency response and ensure high reliability. A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact. The new Hertz Dieci DCX 160.3 6” coaxial includes an adaptor ring designed for installation in GM and Honda models with 6” OEM speakers.
1. Large motor assembly for mobile voice coil control.
2. Pure copper voice coil, wound on conex former, for maximum lightness.
3. Water-repellent treated paper cone.
4. TPU surround, for wide excursion and resonance damping.
5. Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.
6. DIN size basket protected by abrasion-proof dust paint.
7. Tin-plated, high current terminals.
8. Silver-plated lead wires for maximum reliability and conductivity.
9. Butyl rubber protective cover, against crashes and abrasions.
10. Epoxy glue for basket and motor system provides perfect coupling.
11. Low carbon content plates for maximum magnetic permeability and high heat dissipation.
12. Provided adaptor ring designed for installation in GM and Honda models with 6”.
| Brand | Hertz Audio | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Finish | N/A | ||||||||||||||||||||||
| Manufacturer Part No. | DCX 160.3 | ||||||||||||||||||||||
| Fitment |
|
||||||||||||||||||||||
| Additional Notes | CC | ||||||||||||||||||||||
| Ships Within: | 5-7 Days |
| Power Handling - Peak W | 120 |
| Power Handling - Continuous W | 60 |
| Impedance ? | 4 |
| Frequency response Hz | 50 ÷ 21k |
| Sensitivity dB SPL | 93 |
| Woofer size mm (in.) | 160 (6) |
| Tweeter size mm (in.) | 15 (0.6) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Woofer magnet | High density flux ferrite |
| Tweeter magnet | Neodymium |
| Woofer cone | Water-repellent pressed paper |
All items covered by the manufacter's warranty
