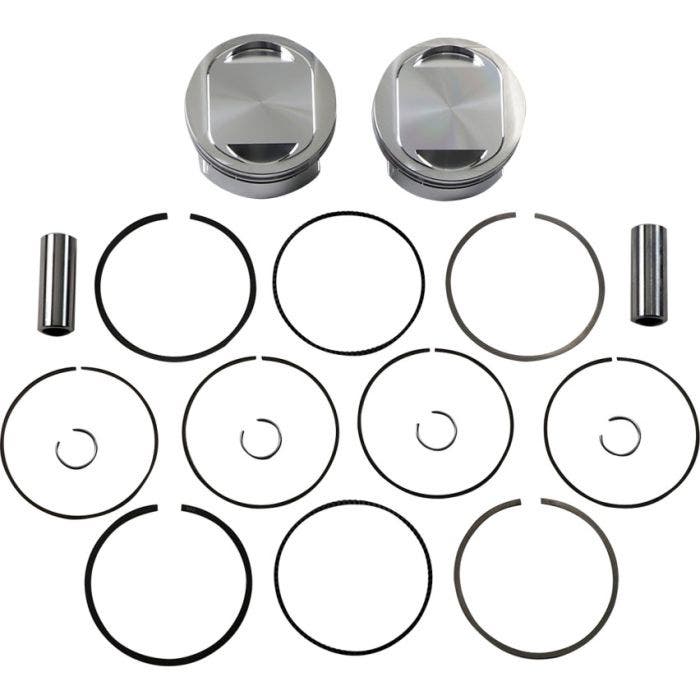

JE Pistons 324722 Dome 98" Big Bore Piston Set for 88"/96" Harley Twin Cam 99-17
With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.
98" Big Bore Piston Set
Specs:
Bore Diameter | 100.00 |
---|---|
Piston Head Type | Dome |
Piston Volume | 8.7 |
Pin Part Number | 927-2250-15-51C |
Piston Pin Inside Diameter | 0.627 |
Piston Pin Length | 57.15 |
Piston Pin Outside Diameter | 0.927 |
Retainer Lock Part Number | 927-073-MW |
Ringset Included | Yes |
Ringset Number | JG1001-3937 |
Top Compression Ring Thickness | 0.04 |
Second Compression Ring Thickness | 0.048 |
Oil Ring Thickness | 0.111 |
Piston Material | 2618 |
Forging Type | FSR |
Piston Avg Weight | 403 |
Compression Ratio | 10.50:1 |
With a history in racing dating back to 1947, JE Pistons is the industry leader in high-performance powersports forged racing pistons. JE proudly engineers, forges, and machines precision racing pistons for a wide range of powersports machines in-house in the USA.
98" Big Bore Piston Set
Specs:
Bore Diameter | 100.00 |
---|---|
Piston Head Type | Dome |
Piston Volume | 8.7 |
Pin Part Number | 927-2250-15-51C |
Piston Pin Inside Diameter | 0.627 |
Piston Pin Length | 57.15 |
Piston Pin Outside Diameter | 0.927 |
Retainer Lock Part Number | 927-073-MW |
Ringset Included | Yes |
Ringset Number | JG1001-3937 |
Top Compression Ring Thickness | 0.04 |
Second Compression Ring Thickness | 0.048 |
Oil Ring Thickness | 0.111 |
Piston Material | 2618 |
Forging Type | FSR |
Piston Avg Weight | 403 |
Compression Ratio | 10.50:1 |
Brand | JE Pistons |
---|---|
Drag Part # | 0910-5937 |
Manufacturer Part No. | 324722 |
Fitment | 1999-2017 Harley-Davidson Twin Cam 88"/96" Bored To 98" |
Additional Notes | BI |
Ships Within: | 24 Hrs |
1999-2017 Harley-Davidson Twin Cam 88"/96" Bored To 98"
