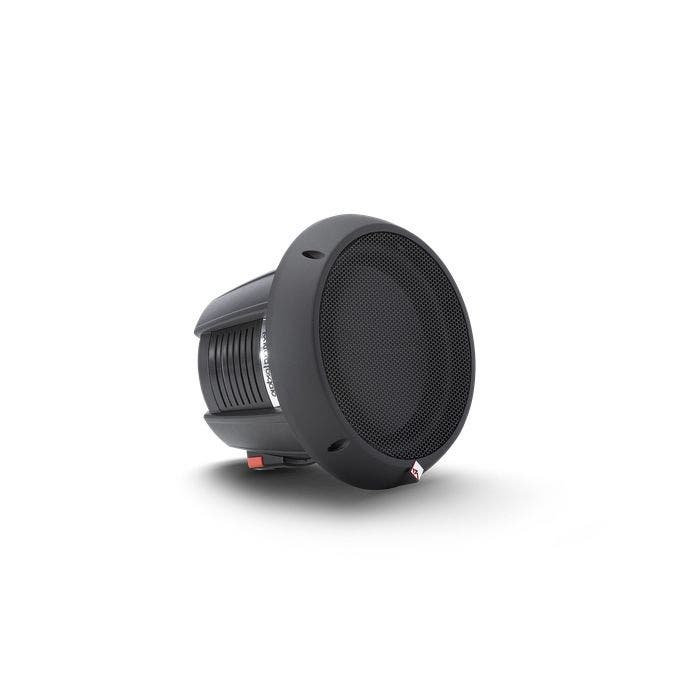

Rockford Fosgate Power 10" T1 4-Ohm DVC Subwoofer Speaker T1D410

$399.99
SKU
RF-T1D410

Innovative technologies allow the T1D410 subwoofer to perform like a larger woofer over the previous model. The T1 10” features dual 4-Ohm voice coils, 600 Watts RMS power handling, and includes a grille with integral trim ring.

The Power Series T1D410 Dual 4-Ohm subwoofer builds on innovative new Rockford Fosgate technologies. These bad boys have patented VAST technology that increases surface cone area up to 25% so the T1D410 performs like a much larger woofer over the previous model. The new FlexFit basket not only looks the part but it provides extreme flexibility for extreme installations. Clean, high tech and ready to set off car alarms, the T1D410 is here!

  • Symmetrical dual progressive roll tear resistant poly-cotton spiders
  • Periodic-stitched fatigue resistant tinsel lead wire
  • Proprietary 8 AWG insulated allmetal input spring terminal connection
  • Optimized and matched magnetic and complicance geometry
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Anodized aluminum heat sinking dust cap
  • Kevlar fiber reinforced paper cone
  • Rigid die-cast aluminum basket
  • Optimized pole piece and spider venting
  • Anodized aluminum voice coil former / copper clad aluminum wire
  • 1 Year Warranty
Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max
Magnet Weight (oz)
100 oz. (2.84 kg)
Size
10"
Voice Coil Diameter
3" (75.4mm)
SPL (dB @ 1w/1m)
83
Fs (Hz)
36
Qes
0.73
Woofer Displacement
0.078 cu. ft. (2.2 Liters)
Cutout Diameter
9.0625 in. (230 mm)
Nominal Impedance
Dual 4-Ohm
Sd (cm2)
345
Speaker Connector
Compression Terminal
Mounting Depth
6.375 in. (161.9 mm)
Shipping Weight
25.7 Lbs. (11.65 Kg.)
Qts
0.65
Qms
5.70
Vas (Liters)
15.7
Xmax (mm)
16
Re (Ohms)
6.50
Le (mH)
2.5
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.75 cu. ft. (21.2 Liters)
Vented Box Volume (Vb)
1.5 cu. ft. (42.4 Liters)

Innovative technologies allow the T1D410 subwoofer to perform like a larger woofer over the previous model. The T1 10” features dual 4-Ohm voice coils, 600 Watts RMS power handling, and includes a grille with integral trim ring.

The Power Series T1D410 Dual 4-Ohm subwoofer builds on innovative new Rockford Fosgate technologies. These bad boys have patented VAST technology that increases surface cone area up to 25% so the T1D410 performs like a much larger woofer over the previous model. The new FlexFit basket not only looks the part but it provides extreme flexibility for extreme installations. Clean, high tech and ready to set off car alarms, the T1D410 is here!

  • Symmetrical dual progressive roll tear resistant poly-cotton spiders
  • Periodic-stitched fatigue resistant tinsel lead wire
  • Proprietary 8 AWG insulated allmetal input spring terminal connection
  • Optimized and matched magnetic and complicance geometry
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Anodized aluminum heat sinking dust cap
  • Kevlar fiber reinforced paper cone
  • Rigid die-cast aluminum basket
  • Optimized pole piece and spider venting
  • Anodized aluminum voice coil former / copper clad aluminum wire
  • 1 Year Warranty
Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max
Magnet Weight (oz)
100 oz. (2.84 kg)
Size
10"
Voice Coil Diameter
3" (75.4mm)
SPL (dB @ 1w/1m)
83
Fs (Hz)
36
Qes
0.73
Woofer Displacement
0.078 cu. ft. (2.2 Liters)
Cutout Diameter
9.0625 in. (230 mm)
Nominal Impedance
Dual 4-Ohm
Sd (cm2)
345
Speaker Connector
Compression Terminal
Mounting Depth
6.375 in. (161.9 mm)
Shipping Weight
25.7 Lbs. (11.65 Kg.)
Qts
0.65
Qms
5.70
Vas (Liters)
15.7
Xmax (mm)
16
Re (Ohms)
6.50
Le (mH)
2.5
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.75 cu. ft. (21.2 Liters)
Vented Box Volume (Vb)
1.5 cu. ft. (42.4 Liters)
