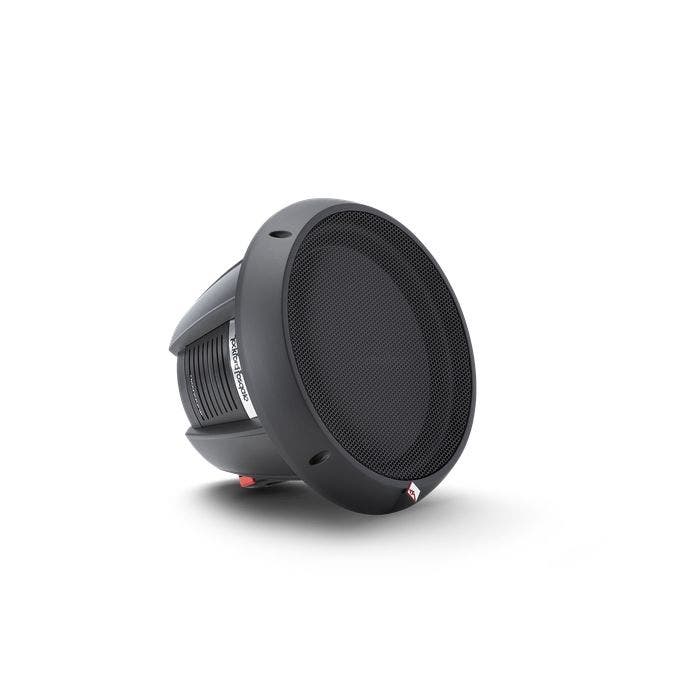

Rockford Fosgate Power 12" T1 2-Ohm DVC Subwoofer Speaker T1D212

$449.99
SKU
RF-T1D212

Innovative technologies allow the T1D212 subwoofer to perform like a larger woofer over the previous model. The T1 12” features dual 2-Ohm voice coils, 800 Watts RMS power handling, and includes a grille with integral trim ring.

The Power Series T1D212 Dual 2-Ohm subwoofer builds on innovative new Rockford Fosgate technologies. These bad boys have patented VAST technology that increases surface cone area up to 25% so the T1D212 performs like a much larger woofer over the previous model. The new FlexFit basket not only looks the part but it provides extreme flexibility for extreme installations. Clean, high tech and ready to set off car alarms, the T1D212 is here!

  • Symmetrical dual progressive roll tear resistant poly-cotton spiders
  • Periodic-stitched fatigue resistant tinsel lead wire
  • Proprietary 8 AWG insulated allmetal input spring terminal connection
  • Optimized and matched magnetic and complicance geometry
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Anodized aluminum heat sinking dust cap
  • Kevlar fiber reinforced paper cone
  • Rigid die-cast aluminum basket
  • Optimized pole piece and spider venting
  • Anodized aluminum voice coil former / copper clad aluminum wire
  • 1 Year Warranty
Size
12"
Speaker Connector
Compression Terminal
Voice Coil Diameter
3" (75.5 mm)
Nominal Impedance
Dual 2-Ohm
Mounting Depth
6.75 in. (171 mm)
Shipping Weight
33.3 Lbs. (15.10 Kg.)
SPL (dB @ 1w/1m)
85
Qts
0.52
Qms
4.50
Vas (Liters)
55.8
Xmax (mm)
16
Le (mH)
1.8
Power Handling (Watts RMS)
800 Watts RMS
1600 Watts Max
Fs (Hz)
28
Magnet Weight (oz)
123 oz. (3.48 kg)
Qes
0.59
Cutout Diameter
11.25 in. (285 mm)
Woofer Displacement
0.106 cu. ft. (3.0 Liters)
Sd (cm2)
548
Re (Ohms)
3.25
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.25 cu. ft. (35.3 Liters)
Vented Box Volume (Vb)
1.75 cu. ft. (49.5 Liters)

Innovative technologies allow the T1D212 subwoofer to perform like a larger woofer over the previous model. The T1 12” features dual 2-Ohm voice coils, 800 Watts RMS power handling, and includes a grille with integral trim ring.

The Power Series T1D212 Dual 2-Ohm subwoofer builds on innovative new Rockford Fosgate technologies. These bad boys have patented VAST technology that increases surface cone area up to 25% so the T1D212 performs like a much larger woofer over the previous model. The new FlexFit basket not only looks the part but it provides extreme flexibility for extreme installations. Clean, high tech and ready to set off car alarms, the T1D212 is here!

  • Symmetrical dual progressive roll tear resistant poly-cotton spiders
  • Periodic-stitched fatigue resistant tinsel lead wire
  • Proprietary 8 AWG insulated allmetal input spring terminal connection
  • Optimized and matched magnetic and complicance geometry
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Anodized aluminum heat sinking dust cap
  • Kevlar fiber reinforced paper cone
  • Rigid die-cast aluminum basket
  • Optimized pole piece and spider venting
  • Anodized aluminum voice coil former / copper clad aluminum wire
  • 1 Year Warranty
Size
12"
Speaker Connector
Compression Terminal
Voice Coil Diameter
3" (75.5 mm)
Nominal Impedance
Dual 2-Ohm
Mounting Depth
6.75 in. (171 mm)
Shipping Weight
33.3 Lbs. (15.10 Kg.)
SPL (dB @ 1w/1m)
85
Qts
0.52
Qms
4.50
Vas (Liters)
55.8
Xmax (mm)
16
Le (mH)
1.8
Power Handling (Watts RMS)
800 Watts RMS
1600 Watts Max
Fs (Hz)
28
Magnet Weight (oz)
123 oz. (3.48 kg)
Qes
0.59
Cutout Diameter
11.25 in. (285 mm)
Woofer Displacement
0.106 cu. ft. (3.0 Liters)
Sd (cm2)
548
Re (Ohms)
3.25
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.25 cu. ft. (35.3 Liters)
Vented Box Volume (Vb)
1.75 cu. ft. (49.5 Liters)
More Information
Brand Rockford Fosgate
Wattage 1600 watts
Manufacturer Part No. T1D212
Fitment 12v
Additional Notes cc
