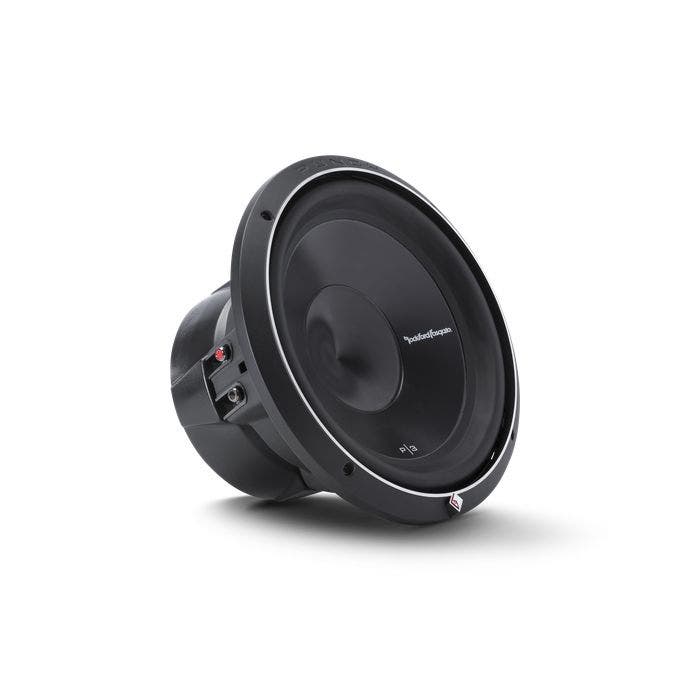

Rockford Fosgate Punch 12" P3 2-Ohm DVC Subwoofer Speaker P3D2-12

$279.99
Out of stock
SKU
RF-P3D2-12a

The P3D2-12 is the best performing Rockford Fosgate Punch series subwoofer. Built to max out your car audio system, the P3 12” features Dual 2-Ohm voice coils (DVC), 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring. The P3D2-12 12 inch car subwoofer also includes:

The P3D2-12 is Rockford Fosgate's best performing Punch series subwoofer for cars and trucks. The P3 12 inch subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme car and truck installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.


  • Custom 10-AWG nickel plated push terminals
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Extended pole piece and bumped vented backplate
  • Anodized aluminum cone and dustcap
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Protective PVC textured magnet cover
  • Diamond cut cast aluminum trim ring with optional grille
  • StampCast basket with integrated spider venting
  • 1 Year Warranty
Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max
Voice Coil Diameter
2.5" (65.5 mm)
Magnet Weight (oz)
96 oz. (2.73 kg.)
Size
12"
Nominal Impedance
Dual 2-Ohm
Mounting Depth
6.66 in. (169.3 mm)
Woofer Displacement
0.106 cu. ft. (3.0 Liters)
Re (Ohms)
3.20
Speaker Connector
Dual 10 AWG compression
SPL (dB @ 1w/1m)
85
Shipping Weight
20.9 Lbs. (9.48 kg)
Fs (Hz)
26.5
Qts
0.49
Qes
0.53
Qms
6.70
Cutout Diameter
11.25 in. (285 mm)
Le (mH)
4.25
Vas (Liters)
57.7
Xmax (mm)
15.2
Sd (cm2)
570
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb)
1.79 cu. ft. (50.6 Liters)

The P3D2-12 is the best performing Rockford Fosgate Punch series subwoofer. Built to max out your car audio system, the P3 12” features Dual 2-Ohm voice coils (DVC), 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring. The P3D2-12 12 inch car subwoofer also includes:

The P3D2-12 is Rockford Fosgate's best performing Punch series subwoofer for cars and trucks. The P3 12 inch subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme car and truck installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.


  • Custom 10-AWG nickel plated push terminals
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Extended pole piece and bumped vented backplate
  • Anodized aluminum cone and dustcap
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Protective PVC textured magnet cover
  • Diamond cut cast aluminum trim ring with optional grille
  • StampCast basket with integrated spider venting
  • 1 Year Warranty
Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max
Voice Coil Diameter
2.5" (65.5 mm)
Magnet Weight (oz)
96 oz. (2.73 kg.)
Size
12"
Nominal Impedance
Dual 2-Ohm
Mounting Depth
6.66 in. (169.3 mm)
Woofer Displacement
0.106 cu. ft. (3.0 Liters)
Re (Ohms)
3.20
Speaker Connector
Dual 10 AWG compression
SPL (dB @ 1w/1m)
85
Shipping Weight
20.9 Lbs. (9.48 kg)
Fs (Hz)
26.5
Qts
0.49
Qes
0.53
Qms
6.70
Cutout Diameter
11.25 in. (285 mm)
Le (mH)
4.25
Vas (Liters)
57.7
Xmax (mm)
15.2
Sd (cm2)
570
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb)
1.79 cu. ft. (50.6 Liters)
