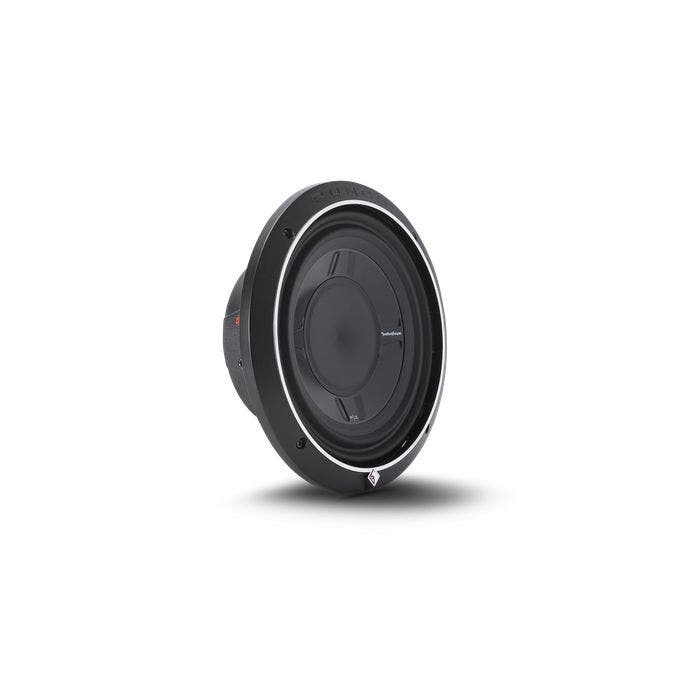

Rockford Fosgate Punch 10" P3S Shallow 4-Ohm DVC Subwoofer Speaker P3SD4-10

$229.99
Out of stock
SKU
RF-P3SD4-10a

Rockford Fosgate P3S 10" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD4-10 features Dual 4-Ohm voice coils for wiring flexibility and 300 Watts RMS power handling.

The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

  • M-Roll Santoprene™ surround
  • StampCast basket with integrated spider venting
  • Anodized aluminum cone and dustcap
  • Diamond cut cast aluminum trim ring with optional grille
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Shallow Motor Assembly
  • Optimized for both sealed and vented enclosures
  • 1 Year Warranty
Magnet Weight (kg) NOT USED
1.32 oz. (47 kg.)
Nominal Impedance
Dual 4-Ohm
Magnet Weight (oz)
47 oz. (1.32 Kg)
Voice Coil Diameter
2.5" (65.5 mm)
SPL (dB @ 1w/1m)
83
Fs (Hz)
42
Qms
6.00
Cutout Diameter
9.06 in. (230.0 mm)
Vas (Liters)
14.3
Woofer Displacement
0.074 cu. ft. (2.1 Liters)
Sd (cm2)
333
Size
10"
Speaker Connector
Dual 10 AWG Compression
Mounting Depth
3.50 in. (89.0 mm)
Qts
0.78
Shipping Weight
11.9 Lbs. (5.39 kg.)
Qes
0.90
Xmax (mm)
8.1
CEA-2031 Compliant
CEA-2031 Guidelines
Power Handling (Watts RMS)
300 Watts RMS
600 Watts Max
Re (Ohms)
6.80
Le (mH)
4.3
Subwoofer Type
Shallow
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.5 cu. ft. (14.1 Liters)
Vented Box Volume (Vb)
1.0 cu. ft. (28.3 Liters)

Rockford Fosgate P3S 10" shallow mount subwoofer delivers “Punch” even when depth is limited. The P3SD4-10 features Dual 4-Ohm voice coils for wiring flexibility and 300 Watts RMS power handling.

The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.

  • M-Roll Santoprene™ surround
  • StampCast basket with integrated spider venting
  • Anodized aluminum cone and dustcap
  • Diamond cut cast aluminum trim ring with optional grille
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Shallow Motor Assembly
  • Optimized for both sealed and vented enclosures
  • 1 Year Warranty
Magnet Weight (kg) NOT USED
1.32 oz. (47 kg.)
Nominal Impedance
Dual 4-Ohm
Magnet Weight (oz)
47 oz. (1.32 Kg)
Voice Coil Diameter
2.5" (65.5 mm)
SPL (dB @ 1w/1m)
83
Fs (Hz)
42
Qms
6.00
Cutout Diameter
9.06 in. (230.0 mm)
Vas (Liters)
14.3
Woofer Displacement
0.074 cu. ft. (2.1 Liters)
Sd (cm2)
333
Size
10"
Speaker Connector
Dual 10 AWG Compression
Mounting Depth
3.50 in. (89.0 mm)
Qts
0.78
Shipping Weight
11.9 Lbs. (5.39 kg.)
Qes
0.90
Xmax (mm)
8.1
CEA-2031 Compliant
CEA-2031 Guidelines
Power Handling (Watts RMS)
300 Watts RMS
600 Watts Max
Re (Ohms)
6.80
Le (mH)
4.3
Subwoofer Type
Shallow
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.5 cu. ft. (14.1 Liters)
Vented Box Volume (Vb)
1.0 cu. ft. (28.3 Liters)

More Information
Brand Rockford Fosgate
Wattage 600 watts
Manufacturer Part No. P3SD4-10
Fitment 12v
Additional Notes cc
