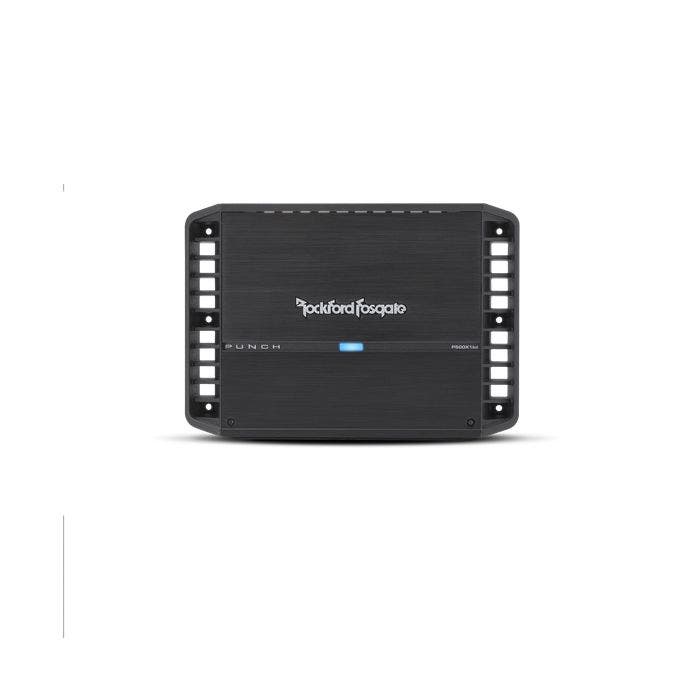

Rockford Fosgate Punch 500 Watt Class-bd Mono Amplifier P500X1bd
The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers.
With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
- High level input capable with Auto Turn-On circuit
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- RCA pass-thru outputs
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- Infrasonic filter
- 1 Year Warranty
(Sum of Rated Power)
(RMS Continuous Power)
300 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm
(PVC/PowerCube®)
410 Watts x 1 @ 2-Ohm
787 Watts x 1 @ 1-Ohm
2-Ohm: <1.0%
1-Ohm: <1.0%
Infrasonic Filter (IF): 28Hz @ 12dB/Octave
All-Pass (AP): No
(not included)
6.05 x 19.71 x 28.02 (cm)
The Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers.
With its super efficient Class-bd circuit topology, the P500X1bd will drop some serious BASS! Due to its dedicated low frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers with ease.
- High level input capable with Auto Turn-On circuit
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- RCA pass-thru outputs
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- Infrasonic filter
- 1 Year Warranty
(Sum of Rated Power)
(RMS Continuous Power)
300 Watts x 1 @ 2-Ohm
500 Watts x 1 @ 1-Ohm
(PVC/PowerCube®)
410 Watts x 1 @ 2-Ohm
787 Watts x 1 @ 1-Ohm
2-Ohm: <1.0%
1-Ohm: <1.0%
Infrasonic Filter (IF): 28Hz @ 12dB/Octave
All-Pass (AP): No
(not included)
6.05 x 19.71 x 28.02 (cm)
| Brand | Rockford Fosgate |
|---|---|
| Wattage | 500 |
| Manufacturer Part No. | P500X1BD |
| Fitment | 12V |
| Additional Notes | cc |
| Ships Within: | 5-7 Days |
