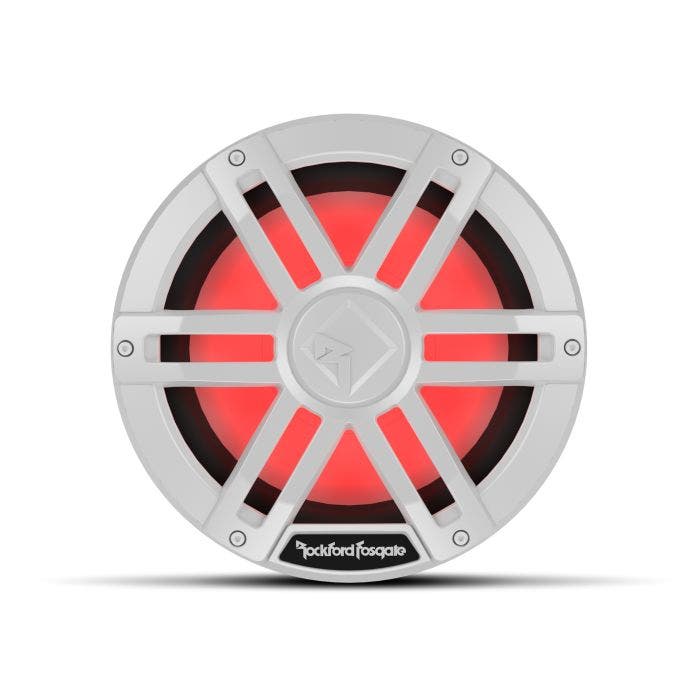

Rockford Fosgate M1D2-10 White 10" DVC 2Ω Color Optix Marine Subwoofer 300W

$219.99
Only 2 left
SKU
RF-M1D2-10

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.

  • Optically clear UV stable RGB Lighting Encapsulation
  • Ultra Bright Wide Angle Tri Color (RGB) SMT LED's with Flat Mold Lenses
  • Vented motor design with water-repelling nano coated mesh screen
  • 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • Fully insulated silicone tinsel leads
  • 100% UV Stable ASA plastic Frame & Grill
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Proprietary Dual Function Input option
  • Integrated Deutsch™/Amphenol™ RGB and Speaker inputs
  • Linear Synthetic Fiber Blend Spiders
  • Santoprene VAST Surround
  • VAST vertical attach surround technique
  • Co-molded surround and mineral filled polypropylene cone body
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Integrated impedance selector switch
  • 2-Year Warranty
Size
10"
Nominal Impedance (Ohms)
1-Ohm or 4-Ohm Switchable
Power Handling (Watts RMS)
300 Watts RMS
1200 Watts PEAK
Voice Coil Diameter
2.0" (50 mm)
Frequency Response
20 Hz - 750 Hz
Magnet Weight (oz)
47.70 oz. (1.35 Kg)
Fs (Hz)
34
Re (Ohms)
3.7
Le (mH)
2.22
Sd (cm2)
394.1
Qms
7.80
Qes
0.47
Qts
0.44
Vas
44.2
SPL (dB @ 1w/1m)
91.5
Xmax (mm)
7.0
Woofer Displacement
2.80 (0.10 Liters)
Speaker Connector
Deutsch™
Cutout Diameter
8.90" (226 mm)
Mounting Depth
4.23" (107.4 mm)
Shipping Weight
8.6 Lbs. (3.9 Kg)

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 1 and 4 ohms as easy as flipping a switch.

  • Optically clear UV stable RGB Lighting Encapsulation
  • Ultra Bright Wide Angle Tri Color (RGB) SMT LED's with Flat Mold Lenses
  • Vented motor design with water-repelling nano coated mesh screen
  • 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • Fully insulated silicone tinsel leads
  • 100% UV Stable ASA plastic Frame & Grill
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Proprietary Dual Function Input option
  • Integrated Deutsch™/Amphenol™ RGB and Speaker inputs
  • Linear Synthetic Fiber Blend Spiders
  • Santoprene VAST Surround
  • VAST vertical attach surround technique
  • Co-molded surround and mineral filled polypropylene cone body
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Integrated impedance selector switch
  • 2-Year Warranty
Size
10"
Nominal Impedance (Ohms)
1-Ohm or 4-Ohm Switchable
Power Handling (Watts RMS)
300 Watts RMS
1200 Watts PEAK
Voice Coil Diameter
2.0" (50 mm)
Frequency Response
20 Hz - 750 Hz
Magnet Weight (oz)
47.70 oz. (1.35 Kg)
Fs (Hz)
34
Re (Ohms)
3.7
Le (mH)
2.22
Sd (cm2)
394.1
Qms
7.80
Qes
0.47
Qts
0.44
Vas
44.2
SPL (dB @ 1w/1m)
91.5
Xmax (mm)
7.0
Woofer Displacement
2.80 (0.10 Liters)
Speaker Connector
Deutsch™
Cutout Diameter
8.90" (226 mm)
Mounting Depth
4.23" (107.4 mm)
Shipping Weight
8.6 Lbs. (3.9 Kg)
