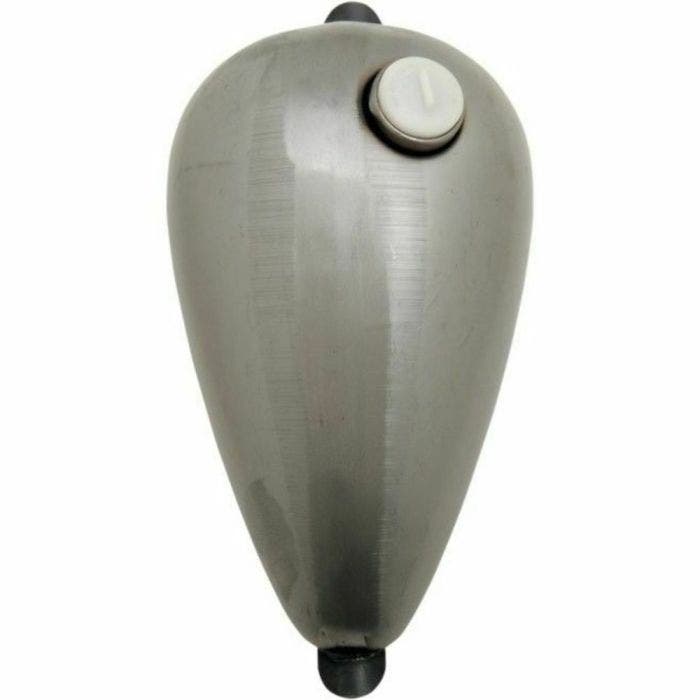

2.2 Gallon Raw Gas Tank Chopper Wasp Peanut Harley Ironhead XS650 38-0693

• Gas tank has a right side petcock opening, and a fuel capacity of 2.2 gallons.
• It uses a single bayonet style gas cap, and has front and rear mount tabs.
• Check the tank for flaws and fit before painting. It requires sanding and primer.
• Do not grind or sand the seams or joints.
• Check the petcock opening, making sure the petcock can be easily installed.
• The petcock fitting should be masked or plugged during painting for easy installation of the petcock.
• The petcock must be ordered separately.
• It is suggested to pressure test and use a tank sealer.
• We suggest using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks and preventcorrosion.

Measurements

• LENGTH: 15.5"
• OAL W/ TABS: 18"
• TUNNEL WIDTH: 2.5"
• HEIGHT FRONT: 9"
• HEIGHT REAR: 3"
• WIDTH AT WIDEST POINT: 9"

NOTE: THIS DOES NOT JUST BOLT ON STOCK BIKES. USES 2 POINT MOUNTING (FRONT & REAR TAB)
