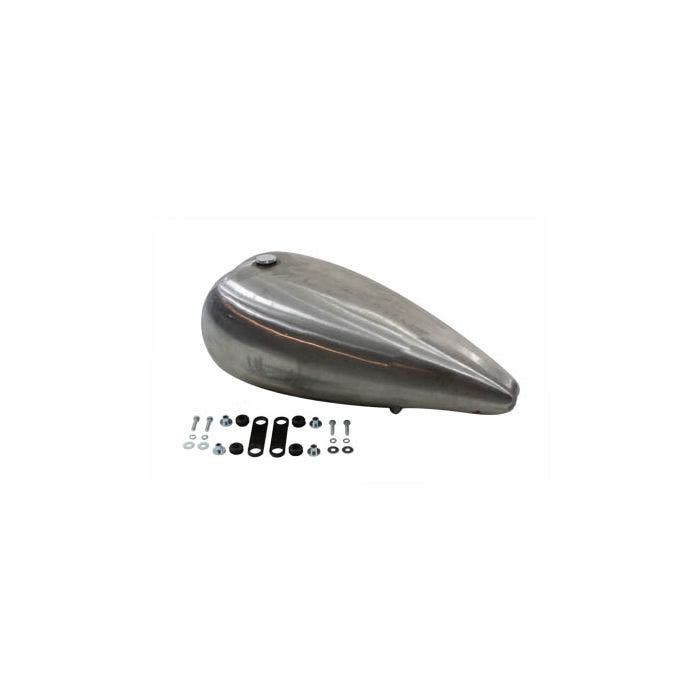

V-Twin Raw 7.5" Stretch Image Gas Tank Harley Custom Bobber Chopper & Metric
Gas tank has a left side petcock opeing with a fuel capacity if 5.2 gallons.
It features flush lower mounts and includes pop up cap.
The Wyatt Gatling tank has a 7.5" stretch to the back of the tank which does not affect the mounts.
Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints.
Clean the inside of the tank.
It is suggested to pressure test and use a tank sealer.
We suggest using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks and prevent corrosion.
Check petcock opening, making sure the petcock can be easily installed.
The petcock fitting should be masked or plugged during painting for easy installation of the petcock.
Order mounting hardware separately
The distance from the rear of the tunnel to the rear mount is 10-3/4".
The distance from the front of the tunnel to the front mount is 6-1/2".
| Top Length: 27" | Bottom Length: 26" | Rear Width: 3" |
| ront Width: 11" | Rear Height: 2" | Front Height: 9" |
| Front Tunnel Height: 3.5" | Rear Tunnel Height: 1.5" | Tunnel Length: 26.5" |
| Tunnel Width: 2-1/2" |
Gas tank has a left side petcock opeing with a fuel capacity if 5.2 gallons.
It features flush lower mounts and includes pop up cap.
The Wyatt Gatling tank has a 7.5" stretch to the back of the tank which does not affect the mounts.
Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints.
Clean the inside of the tank.
It is suggested to pressure test and use a tank sealer.
We suggest using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks and prevent corrosion.
Check petcock opening, making sure the petcock can be easily installed.
The petcock fitting should be masked or plugged during painting for easy installation of the petcock.
Order mounting hardware separately
The distance from the rear of the tunnel to the rear mount is 10-3/4".
The distance from the front of the tunnel to the front mount is 6-1/2".
| Top Length: 27" | Bottom Length: 26" | Rear Width: 3" |
| ront Width: 11" | Rear Height: 2" | Front Height: 9" |
| Front Tunnel Height: 3.5" | Rear Tunnel Height: 1.5" | Tunnel Length: 26.5" |
| Tunnel Width: 2-1/2" |
| Brand | V-Twin |
|---|---|
| Manufacturer Part No. | 38-0253 |
| Fitment | Harley Custom Bobber Chopper & Metric |
| Additional Notes | cc |
| Ships Within: | 5-7 Days |
