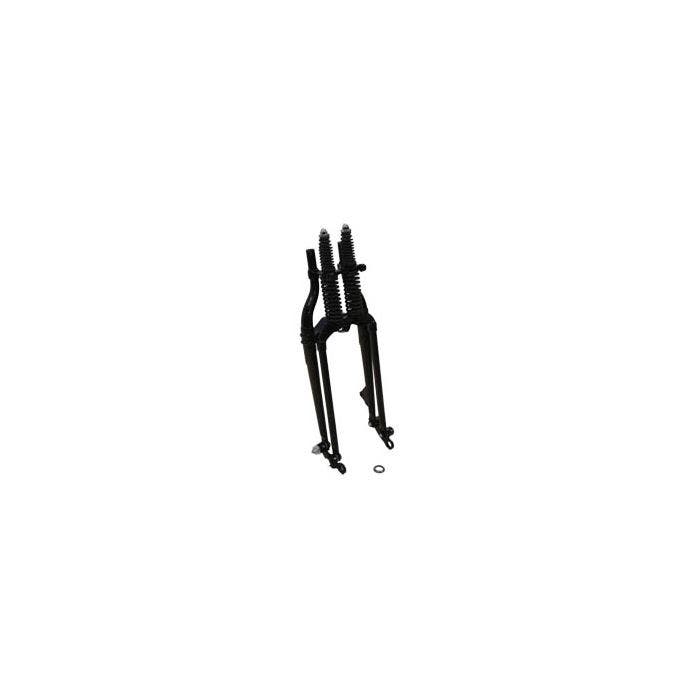

18" Black Springer Front Fork Assembly 7/8" Neck Harley G Style 41-57
Assembly includes front legs, inner and outer springs, outside type rockers for 5/8" axle with studs and bushings, rear leg in black with 7/8" neck stem and spring rods with bushings.
Assembly is a product of 14 separate processes: Tubing, Hydraulic Swage Press, Investment Casting, Forging, Flattening Press, Robotic Welding, Brazing, Polish, Chrome, Paint, Spring Winder, Machine Shop, Drill Shop and Packging.
Includes front legs, inner and outer springs, outside type rockers for 5/8" axle with studs and bushings, rear leg in black with 7/8" neck stem and spring rods with bushings.
1" tubes on top of the rear legs are tapped 3/4"-16 to accept a threaded riser bushing set, which allows use of a triple tree without ears and builder's choice of post riser sets.
Will accept all original style components and accessories for the detailed Replica look.
For use with 1936-64 style interchangeable star hub wheels. Top clamp, neck races, and cone nut are not included.
Some assembly may be required.
The distance between the rockers measures 6-1/2".
Assembly includes front legs, inner and outer springs, outside type rockers for 5/8" axle with studs and bushings, rear leg in black with 7/8" neck stem and spring rods with bushings.
Assembly is a product of 14 separate processes: Tubing, Hydraulic Swage Press, Investment Casting, Forging, Flattening Press, Robotic Welding, Brazing, Polish, Chrome, Paint, Spring Winder, Machine Shop, Drill Shop and Packging.
Includes front legs, inner and outer springs, outside type rockers for 5/8" axle with studs and bushings, rear leg in black with 7/8" neck stem and spring rods with bushings.
1" tubes on top of the rear legs are tapped 3/4"-16 to accept a threaded riser bushing set, which allows use of a triple tree without ears and builder's choice of post riser sets.
Will accept all original style components and accessories for the detailed Replica look.
For use with 1936-64 style interchangeable star hub wheels. Top clamp, neck races, and cone nut are not included.
Some assembly may be required.
The distance between the rockers measures 6-1/2".
Brand | V-Twin |
---|---|
Finish | Black |
Manufacturer Part No. | 49-2402 |
Fitment | 1941-1957 Harley-Davidson G models |
Additional Notes | cc |
1941-1957 Harley-Davidson G models
