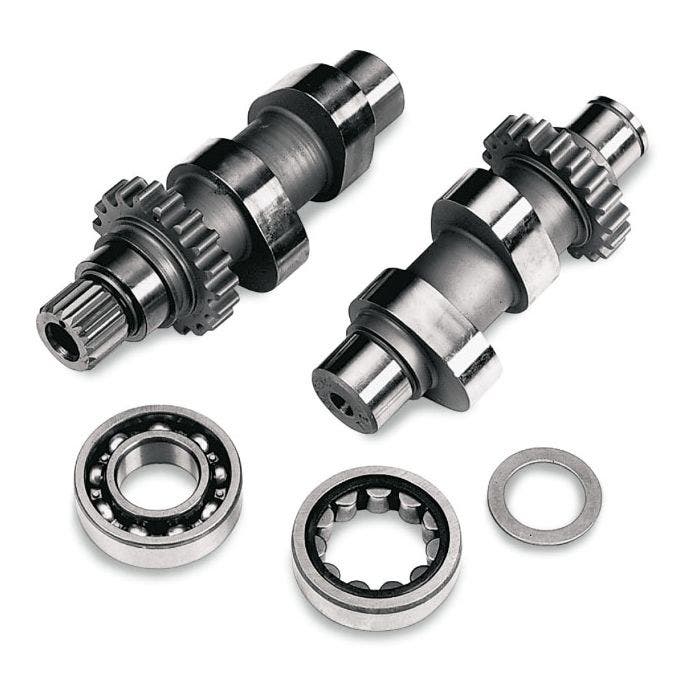

Andrews 32H Series Chain Drive Bolt in Cams for Harley 07-17 Twin Cam Models
Regular Price
$415.95
Special Price
$333.44
Out of stock
SKU
DS09250188
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
| Intake Lift | 0.570" |
| Product Name | Cam Set |
| Exhaust Lift at TDC | 0.120" |
| Intake Lift at TDC | 0.131" |
| Exhaust Open | 52° |
| Intake Duration | 272° |
| Riding Style | Street |
| Application | Exhaust / Intake |
| Exhaust Lift | 0.570" |
| Intake Close | 46° |
| Units | Pair |
| Intake Lobe Centerline | 106° |
| Intake Open | 10° |
| Type | Chain Drive |
| Exhaust Close | 8° |
| Exhaust Duration | 276° |
| Exhaust Lobe Centerline | 112° |
| Grind | 32 Series |
- Manufactured with the help of a computer with cam design capabilities
- Made from alloy steel billets and heat-treated processes are utilized
- Made in the USA
- Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance.
- '00-'06 model cams use a splined cam drive sprocket, for '99 a splined cam drive sprocket is required.
| Intake Lift | 0.570" |
| Product Name | Cam Set |
| Exhaust Lift at TDC | 0.120" |
| Intake Lift at TDC | 0.131" |
| Exhaust Open | 52° |
| Intake Duration | 272° |
| Riding Style | Street |
| Application | Exhaust / Intake |
| Exhaust Lift | 0.570" |
| Intake Close | 46° |
| Units | Pair |
| Intake Lobe Centerline | 106° |
| Intake Open | 10° |
| Type | Chain Drive |
| Exhaust Close | 8° |
| Exhaust Duration | 276° |
| Exhaust Lobe Centerline | 112° |
| Grind | 32 Series |
| Brand | Andrews |
|---|---|
| Machine Type | Street Motorcycle |
| Finish | Raw Machined |
| Drag Part # | 0925-0188 / 09250188 |
| Tucker Part # | 494084 |
| Manufacturer Part No. | 216332 |
| Fitment | 2007-2017 Harley Twin Cam and 2006 Dyna Glide |
| Additional Notes | Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance. Highly tuned engines and require the knowledge of an expert engine builder for proper setup and installation. |
| Ships Within: | 5-7 Days |
| Choose Camshaft Grind | 32H Chain Drive |
2007-2017 Harley Twin Cam and 2006 Dyna Glide
Manufacturer's Warranty
Installer must check coil bind, valve-to-valve clearance and valve-to-piston clearance. Highly tuned engines and require the knowledge of an expert engine builder for proper setup and installation.
