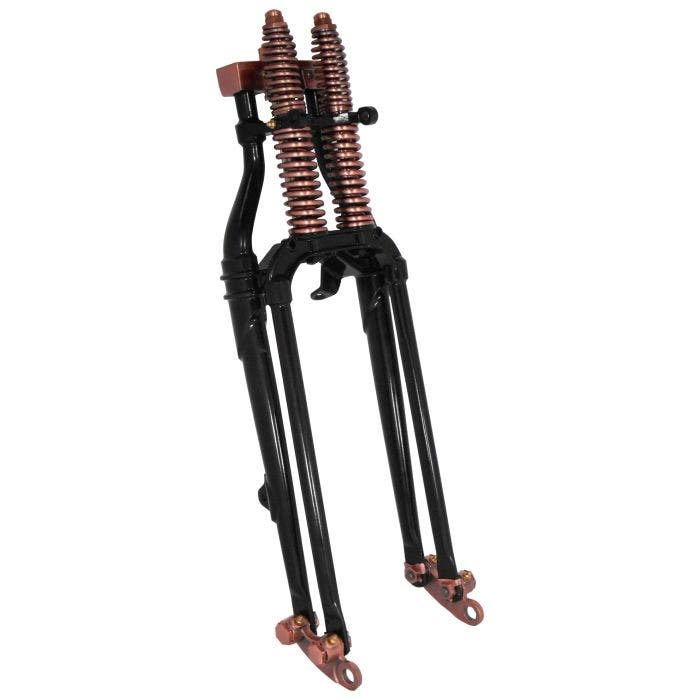

Antique Replica Black Copper 18" 4- Stock Harley Springer Fork Front End 35246
IN BRAND NEW CONDITION
Part # 35246
Fits: Most Harley or custom frames with 1" stem
- Fully assemblee with in-line top bracket without built in rake (0 degree rake)
- The standard length springer (20" measured from the bottom of lower tree to the axle center) is comparable to vintage FL model fork length
- 1" O.D. steering stem designed for Timken type bearings
- Use our Part MU-36652 neck cup conversion kit to install springer on K Model and Sportster 1952/1981
- Measures 8 3/4" between the axle rockers
- Cast rockers
- Includes 3/4" O.D. axle
- Riser mounts are on 4 3/4" centers and threaded 1/2-20
- Universal brake rod mount is on the right rear leg for disc brakes - 5/8" hole
LENGTH: 18'' (CENTER OF AXLE TO BOTTOM OF LOWER TREE OR 19" TO WHERE TREE SITS AGAINST THE BEARING)
TOTAL LENGTH: 28"-29"
NECK STEM: 1"
INSIDE WIDTH OF ROCKERS: APPROX. 8-1/4"
AXLE DIAMETER: 3/4" O.D.
Note: Installation On Some Stock Models Like Dyna, Touring, Sportster, Etc May Require Frame And/Or Tank Modification As Well As Replacement Of Other Components.
Note: If Using An Aftermarket/Custom Frame With External Neck Cups You May Have To Lathe Or Trim The Springer Retaining Nut Down For Proper Fitment Of Top Tree Clamp And Crown Nut!
IN BRAND NEW CONDITION
Part # 35246
Fits: Most Harley or custom frames with 1" stem
- Fully assemblee with in-line top bracket without built in rake (0 degree rake)
- The standard length springer (20" measured from the bottom of lower tree to the axle center) is comparable to vintage FL model fork length
- 1" O.D. steering stem designed for Timken type bearings
- Use our Part MU-36652 neck cup conversion kit to install springer on K Model and Sportster 1952/1981
- Measures 8 3/4" between the axle rockers
- Cast rockers
- Includes 3/4" O.D. axle
- Riser mounts are on 4 3/4" centers and threaded 1/2-20
- Universal brake rod mount is on the right rear leg for disc brakes - 5/8" hole
LENGTH: 18'' (CENTER OF AXLE TO BOTTOM OF LOWER TREE OR 19" TO WHERE TREE SITS AGAINST THE BEARING)
TOTAL LENGTH: 28"-29"
NECK STEM: 1"
INSIDE WIDTH OF ROCKERS: APPROX. 8-1/4"
AXLE DIAMETER: 3/4" O.D.
Note: Installation On Some Stock Models Like Dyna, Touring, Sportster, Etc May Require Frame And/Or Tank Modification As Well As Replacement Of Other Components.
Note: If Using An Aftermarket/Custom Frame With External Neck Cups You May Have To Lathe Or Trim The Springer Retaining Nut Down For Proper Fitment Of Top Tree Clamp And Crown Nut!
Brand | Mid USA |
---|---|
Finish | All Black |
Manufacturer Part No. | 35246 |
Fitment | Most Harley or custom frames with 1" stem |
Additional Notes | cc |
Ships Within: | 5-7 Days |
Most Harley or custom frames with 1" stem
Manufacture's Warranty
