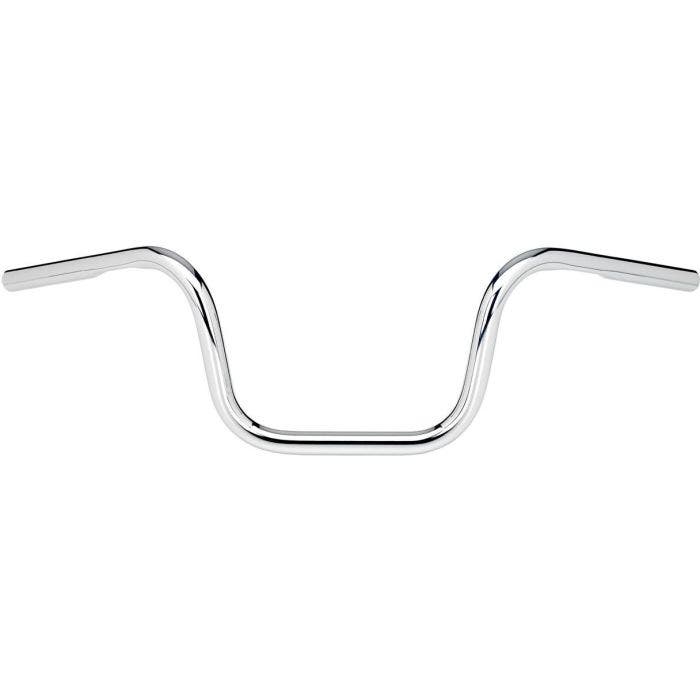

Biltwell 6005-1057 1" Chump Slotted TBW Plug Chrome Handlebar Harley Metric
$239.95
Out of stock
SKU
DS06015646
- Injection-molded, reinforced nylon plug in the bar end on the throttle side lets the handlebar work with select stock and aftermarket single- and dual-cable throttles; simply remove for TBW compatibility
- Seamless, thick-walled 0.120" (3 mm) 4130 chromoly construction
- Precision mandrel-bent tubing for precise alignment and comfortable ergonomics
- Milled slots on bar ends and clamping area for clean internal wire routing
- Notched and internally tapered right-side bar end accepts Harley Throttle-By-Wire control module
- Precision mitered, TIG welded tube joints
- Fitment and strength verified by TüV Germany for European motorcycle operation
| FINISH | CHROME |
| FEATURES | CABLE APPLICATION / NOTCHED FOR THROTTLE-BY-WIRE / SLOTTED |
| TYPE/BEND | CHUMPS |
| RISE | 15 CM (6") / 15 CM / 6" |
| END RISE | 6" / 15 CM / 15 CM (6") |
| WIDTH | 77.5 CM / 30-1/2" / 77,5 CM (30-1/2") |
| CENTER WIDTH | 4-3/4" / 12 CM (4-3/4") / 12 CM |
| PULLBACK/SWEEP | 16.5 CM / 6-1/2" / 16,5 CM (6-1/2") |
| HEIGHT | 20,5 CM (8") / 8" / 20.5 CM |
| HANDLEBAR DIAMETER | 25,4 MM (1") / 1" / 25.4 MM |
| CONTROLS DIAMETER | 25,4 MM (1") / 1" / 25.4 MM |
| CLAMPING DIAMETER | 25,4 MM (1") / 1" / 25.4 MM |
| MATERIAL | CHROMOLY |
- Injection-molded, reinforced nylon plug in the bar end on the throttle side lets the handlebar work with select stock and aftermarket single- and dual-cable throttles; simply remove for TBW compatibility
- Seamless, thick-walled 0.120" (3 mm) 4130 chromoly construction
- Precision mandrel-bent tubing for precise alignment and comfortable ergonomics
- Milled slots on bar ends and clamping area for clean internal wire routing
- Notched and internally tapered right-side bar end accepts Harley Throttle-By-Wire control module
- Precision mitered, TIG welded tube joints
- Fitment and strength verified by TüV Germany for European motorcycle operation
| FINISH | CHROME |
| FEATURES | CABLE APPLICATION / NOTCHED FOR THROTTLE-BY-WIRE / SLOTTED |
| TYPE/BEND | CHUMPS |
| RISE | 15 CM (6") / 15 CM / 6" |
| END RISE | 6" / 15 CM / 15 CM (6") |
| WIDTH | 77.5 CM / 30-1/2" / 77,5 CM (30-1/2") |
| CENTER WIDTH | 4-3/4" / 12 CM (4-3/4") / 12 CM |
| PULLBACK/SWEEP | 16.5 CM / 6-1/2" / 16,5 CM (6-1/2") |
| HEIGHT | 20,5 CM (8") / 8" / 20.5 CM |
| HANDLEBAR DIAMETER | 25,4 MM (1") / 1" / 25.4 MM |
| CONTROLS DIAMETER | 25,4 MM (1") / 1" / 25.4 MM |
| CLAMPING DIAMETER | 25,4 MM (1") / 1" / 25.4 MM |
| MATERIAL | CHROMOLY |
| Brand | Biltwell |
|---|---|
| Manufacturer Part No. | 6005-1057 |
| Center Width | 4 3/4" |
| Pullback | 2" |
| Handlebar Rise | 8" |
| Width | 30 1/2" |
| Fitment | 1" Risers |
| Additional Notes | cc |
| Ships Within: | 5-7 Days |
| Drag Part # | 0601-5646 |
1" Risers
