Feuling 1207 High Load Beehive Valve Springs Titanium Retainers 17-19 Harley M8
- FEULING® HIGH LOAD BEEHIVE® valve springs are a direct bolt in replacement, no spring seat or rocker cover machining required up to 0.565 lift. These springs will accommodate over 0.600 cam lift but will require spring seat pocket machining on the cylinder heads to set correct spring open height. Milwaukee Eight HIGH LOAD springs are machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance.
• FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs.
• Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics!
• HIGH LOAD SERIES springs available for 5/16, 7mm and 6mm valves
• FEULING® BEEHIVE® valve springs are packaged as a matched set and must be installed at the correct OPEN HEIGHT. Matching max cam lift to the open height spec of the valve springs is essential for optimal valve-train operation and spring life. See included spring spec chart

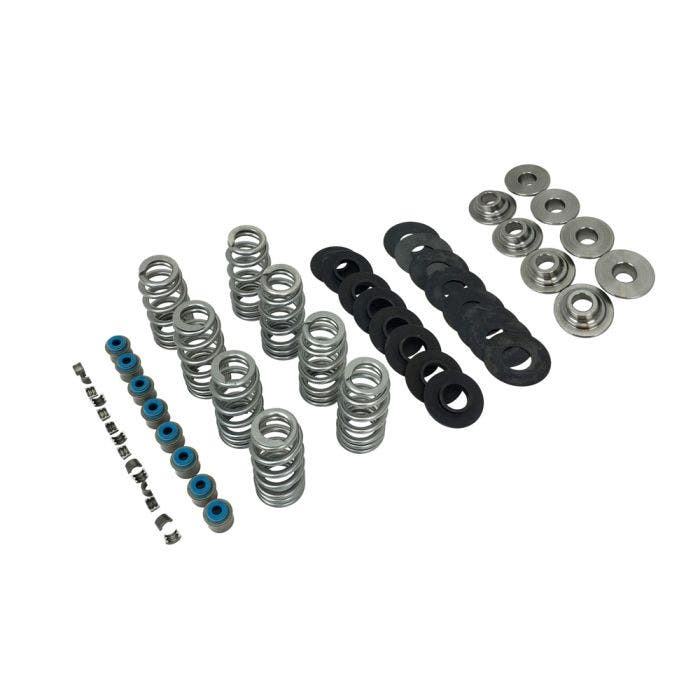

Kits include: matched set of FEULING® HIGH LOAD BEEHIVE® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system.
Dont get stung by inferior valve springs!
Quicker Revving - Smoother Motion - Light Weight Ti Retainers - Bolt in up to 565 lift for M8 - Fit up to 0.600 Lift.
ONLY recommended for large lift camshafts and RACE style engines as these valvesprings if not set properly will create extreme rocker arm deflection - See Feuling 592 grind cam # DS09251265
Part # 1207 (DS09263138) Fits: M8 with factory style 6mm valve stems and triple groove locks, this kit includes Ti retainers. These springs are ONLY recommended for large lift camshafts like Feuling DS09251265 592 lift, and RACE style engines as these valvesprings have increased load and if used on smaller cams will create extreme rocker arm deflection
MILWAUKEE EIGHT
SEAT Lbs. / INSTALLED HEIGHT
151 Lbs. @ 1.475 (0.485 Lift)
144 Lbs. @ 1.498 (0.508 Lift)
143 Lbs. @ 1.501 (0.511 Lift)
140 Lbs. @ 1.511 (0.521 Lift)
124 Lbs. @ 1.562 (0.578 Lift)
120 Lbs. @ 1.582 (0.592 Lift)
304 Lbs @ 0.990 OPEN HEIGHT
Coil Bind @ .945
*Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio
*HIGH LOAD BEEHIVE VALVE SPRINGS FOR HARLEY DAVIDSON MILWAUKEE EIGHT ENGINES RECOMMENDED FOR 0.540 + LIFT CAMSHAFTS
*NOTE: These springs are ONLY recommended for large lift camshafts like Reaper® 592 Cam PART DS09251265 and RACE style engines as these valve springs have increased load and if used on smaller cams will create extreme rocker arm deflection.
- FEULING® HIGH LOAD BEEHIVE® valve springs are a direct bolt in replacement, no spring seat or rocker cover machining required up to 0.565 lift. These springs will accommodate over 0.600 cam lift but will require spring seat pocket machining on the cylinder heads to set correct spring open height. Milwaukee Eight HIGH LOAD springs are machined from a premium grade Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed thermal heat treat and super NexTex® finish to give these valve springs the needed fatigue life to exceed the high demands of V-Twin engines from stock to performance.
• FEULING® BEEHIVE® valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable dual or single valve springs.
• Eliminate valve spring separation, maximize stability, reduce valve-train noise & harmonics!
• HIGH LOAD SERIES springs available for 5/16, 7mm and 6mm valves
• FEULING® BEEHIVE® valve springs are packaged as a matched set and must be installed at the correct OPEN HEIGHT. Matching max cam lift to the open height spec of the valve springs is essential for optimal valve-train operation and spring life. See included spring spec chart
Kits include: matched set of FEULING® HIGH LOAD BEEHIVE® valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with a spring loaded valve stem wiper system.
Dont get stung by inferior valve springs!
Quicker Revving - Smoother Motion - Light Weight Ti Retainers - Bolt in up to 565 lift for M8 - Fit up to 0.600 Lift.
ONLY recommended for large lift camshafts and RACE style engines as these valvesprings if not set properly will create extreme rocker arm deflection - See Feuling 592 grind cam # DS09251265
Part # 1207 (DS09263138) Fits: M8 with factory style 6mm valve stems and triple groove locks, this kit includes Ti retainers. These springs are ONLY recommended for large lift camshafts like Feuling DS09251265 592 lift, and RACE style engines as these valvesprings have increased load and if used on smaller cams will create extreme rocker arm deflection
MILWAUKEE EIGHT
SEAT Lbs. / INSTALLED HEIGHT
151 Lbs. @ 1.475 (0.485 Lift)
144 Lbs. @ 1.498 (0.508 Lift)
143 Lbs. @ 1.501 (0.511 Lift)
140 Lbs. @ 1.511 (0.521 Lift)
124 Lbs. @ 1.562 (0.578 Lift)
120 Lbs. @ 1.582 (0.592 Lift)
304 Lbs @ 0.990 OPEN HEIGHT
Coil Bind @ .945
*Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio
*HIGH LOAD BEEHIVE VALVE SPRINGS FOR HARLEY DAVIDSON MILWAUKEE EIGHT ENGINES RECOMMENDED FOR 0.540 + LIFT CAMSHAFTS
*NOTE: These springs are ONLY recommended for large lift camshafts like Reaper® 592 Cam PART DS09251265 and RACE style engines as these valve springs have increased load and if used on smaller cams will create extreme rocker arm deflection.
Brand | Feuling |
---|---|
Drag Part # | 0926-3138 |
Manufacturer Part No. | 1207 |
Fitment | 2017-2019 Harley-Davidson Milwaukee Eight M8 Engines |
Additional Notes | BI |
Ships Within: | 24 Hrs |
2017-2019 Harley-Davidson Milwaukee Eight M8 Engines
Manufacture's Warranty
BI
