Feuling 7263 Race Series Cam Chest Kit w/ 508 Cam - Oil Cooled 17-19 Harley M8

Regular Price $1,995.95 Special Price $1,696.56
In stock
SKU
FMC-7263

IN BRAND NEW CONDITION

Part # 7263

Fits: 2017-2019 Harley-Davidson Miwaukee Eight - Chain Drive - Oil Cooled Models.

FEULING® M-Eight OIL COOLED camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #. These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable.

  • RACE SERIES® kit
  • Quieter and smoother engine operation
  • Increase oil pressure, scavenge volume and engine oil flow
  • 27% more pressure and scavenge gear volume over stock
  • 42% more scavenge volume with port sizing, matched passages and holes to the engine case
  • 68% more oil volume to the crankshaft and connecting rod bearing
  • 15-25 degree cooler engine temperatures
  • 15-30 degree cooler oil temperatures
  • 10-30 more PSI of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Magnets in oil pump to help protect gears and pressure relief valve
  • Test results show 2 HP gain and 2 ft/lbs of TQ gain to the rear wheel on Milwaukee Eight
  • NOTE: FEULING test results show a 50% reduction of engine sump oil level.

508 CAM - The Grim Reaper Aggressive pulling power with a nasty sound. This camshaft revs up faster than the 521 grind, sounds nastier and pulls harder but is more difficult to tune. The REAPER 508 grind will shine in 114 and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. FEULING recommends matching this cam with our RACE SERIES oiling system part# FMC-7097. High lift valve springs are required, see FEULING BEEHIVE valve spring kit FMC-1107 and FMC-1108. Heavy duty pushrods are highly recommended see FMC-4087.

RPM range 2,250 - 6,250. Grind: 508

Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
Intake .508 21.5 BTDC 36 ABDC 231 .180 97.5
Exhaust .511 45 BBDC 9 ATDC 243 .146 104.25
Overlap: 30.5

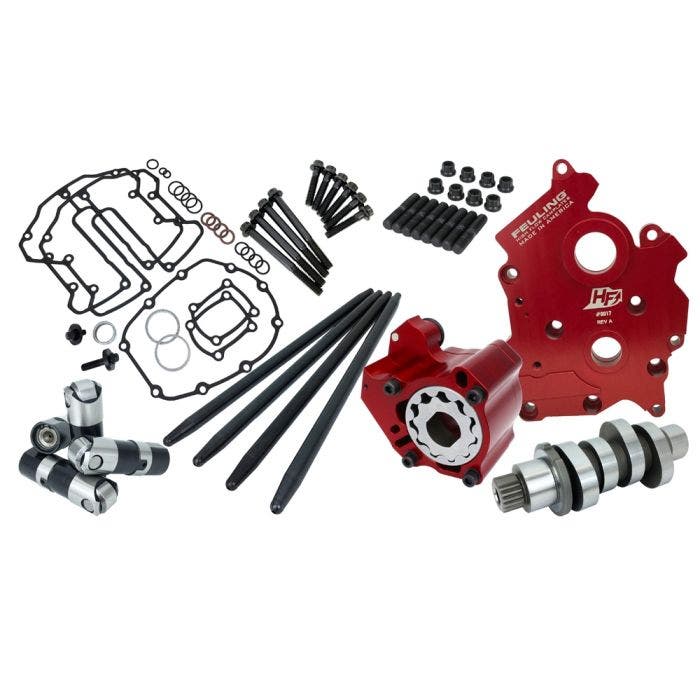

Kits include: FEULING® high volume Oil pump, HIGH FLOW billet Camplate, REAPER® Series Camshaft, hydraulic roller lifters, fixed length pushrods, TIMKEN®/KOYO® cam bearing, rocker arm studs and nuts, gaskets, O-rings, ARP® cam/crank fasteners, washers, moly lube and LOCTITE®.

-RACE SERIES® Kits include a RACE SERIES® oiling system: billet 7075 oil pump, RACE SERIES® lifters, HIGH FLOW billet 7075 aluminum camplate.
• Billet 7075 aluminum oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature, deeper scavenge kidneys over HP+ oil pump.
• Deeper scavenge kidney ports over the HP+ series for even more scavenge flow volume
• RACE SERIES® hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange.

Fitment:

  • 2017-2019 Harley-Davidson Milwaukee Eight - Chain Drive - Oil Cooled Models.

IN BRAND NEW CONDITION

Part # 7263

Fits: 2017-2019 Harley-Davidson Miwaukee Eight - Chain Drive - Oil Cooled Models.

FEULING® M-Eight OIL COOLED camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #. These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable.

  • RACE SERIES® kit
  • Quieter and smoother engine operation
  • Increase oil pressure, scavenge volume and engine oil flow
  • 27% more pressure and scavenge gear volume over stock
  • 42% more scavenge volume with port sizing, matched passages and holes to the engine case
  • 68% more oil volume to the crankshaft and connecting rod bearing
  • 15-25 degree cooler engine temperatures
  • 15-30 degree cooler oil temperatures
  • 10-30 more PSI of oil pressure
  • Reduces wet sumping, blow by and oily air cleaners
  • Magnets in oil pump to help protect gears and pressure relief valve
  • Test results show 2 HP gain and 2 ft/lbs of TQ gain to the rear wheel on Milwaukee Eight
  • NOTE: FEULING test results show a 50% reduction of engine sump oil level.

508 CAM - The Grim Reaper Aggressive pulling power with a nasty sound. This camshaft revs up faster than the 521 grind, sounds nastier and pulls harder but is more difficult to tune. The REAPER 508 grind will shine in 114 and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. FEULING recommends matching this cam with our RACE SERIES oiling system part# FMC-7097. High lift valve springs are required, see FEULING BEEHIVE valve spring kit FMC-1107 and FMC-1108. Heavy duty pushrods are highly recommended see FMC-4087.

RPM range 2,250 - 6,250. Grind: 508

Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
Intake .508 21.5 BTDC 36 ABDC 231 .180 97.5
Exhaust .511 45 BBDC 9 ATDC 243 .146 104.25
Overlap: 30.5

Kits include: FEULING® high volume Oil pump, HIGH FLOW billet Camplate, REAPER® Series Camshaft, hydraulic roller lifters, fixed length pushrods, TIMKEN®/KOYO® cam bearing, rocker arm studs and nuts, gaskets, O-rings, ARP® cam/crank fasteners, washers, moly lube and LOCTITE®.

-RACE SERIES® Kits include a RACE SERIES® oiling system: billet 7075 oil pump, RACE SERIES® lifters, HIGH FLOW billet 7075 aluminum camplate.
• Billet 7075 aluminum oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature, deeper scavenge kidneys over HP+ oil pump.
• Deeper scavenge kidney ports over the HP+ series for even more scavenge flow volume
• RACE SERIES® hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange.

Fitment:

  • 2017-2019 Harley-Davidson Milwaukee Eight - Chain Drive - Oil Cooled Models.
