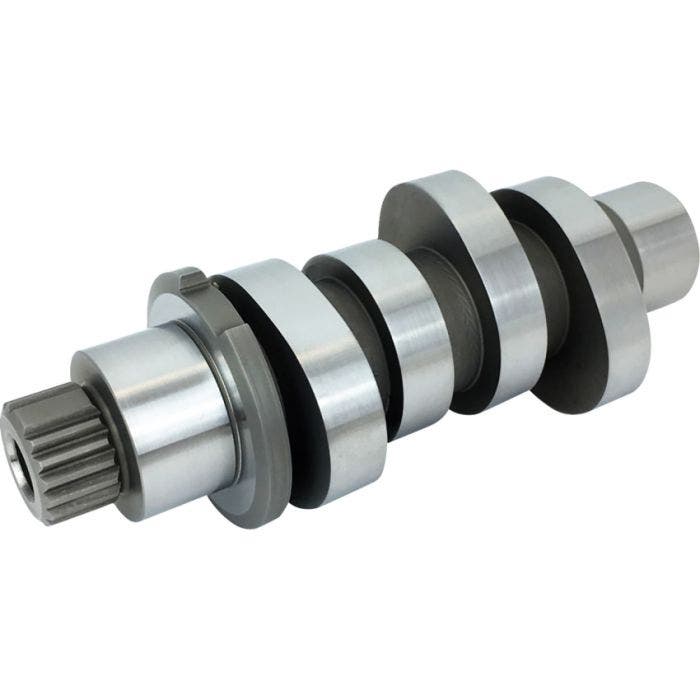

Feuling Chain Drive Reaper Camshaft for Harley Milwaukee 8 M8 17-25

405 CAM - A workhorse, producing a wide powerband increasing torque and HP throughout the entire RPM range when compared to stock. Direct bolt in replacement for Milwaukee Eight engines, can be used with stock valve springs, pushrods, lifters and exhaust. Will respond well with slip-on mufflers and or complete exhaust system and a high flow air cleaner. Note Feuling recommends using free flowing mufflers with smaller cores for best lower RPM power and pull. RPM range 1,700 - 5,700. Grind: 405

Intake: .395 Valve Lift, 4 Open, 24 Close, 200 Duration @ 50, .068 lift @ TDC, 103 Lobe Centerline
Exhaust: .405 Valve Lift, 36 Open, 11 Close, 205 Duration @ 50, .049 lift @ TDC, 108 Lobe Centerline
Overlap: 7

*Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio

EXEMPT FROM EMISSIONS TAMPERING REGULATIONS UNDER CARB EO# D-881-1, 50 State legal CARB compliant: CARB EO# D-881-1

465 CAM - The 465 Reaper is an accelerator, producing solid bottom end performance with substantial gains above 2,800 RPM when compared to stock. This direct bolt in replacement for Milwaukee Eight engines can be used with stock valve springs, pushrods, lifters and exhaust. Will respond well with slip-on mufflers and or performance exhaust system and air cleaner. Use of performance valve-springs is not required but may result in a quieter, smoother running valve-train See Feuling #1107. This cam will also respond well with increased bore and or compression. RPM range 1,850 - 5,950. Grind: 465

Intake: .445 Valve Lift, 4 Open, 23 Close, 207 Duration @ 50, .100 lift @ TDC, 99.5 Lobe Centerline
Exhaust: .465 Valve Lift, 50 Open, 6 Close, 236 Duration @ 50, .100 lift @ TDC, 112 Lobe Centerline
Overlap: 10

*Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio

EXEMPT FROM EMISSIONS TAMPERING REGULATIONS UNDER CARB EO# D-881-1, 50 State legal CARB compliant: CARB EO# D-881-1

472 CAM - The 472 Reaper is a great all-around camshaft and Feulings go to for 4 1/2 stroke 114 - 117 looking for a little more than our 465 grind and wanting a bolt-in. The 472 has a great bottom end with substantial gains above 2,800 RPM when compared to stock. Responds very well to increased bore and or compression, exhaust system and air cleaner. Use of performance valve-springs is not required but may result in a quieter, smoother running valve-train See Feuling #1107 or #1108.

Intake: .468 Valve Lift, 8 Open, 25 Close, 213 Duration @ 50, .117 lift @ TDC, 98.5 Lobe Centerline
Exhaust: .472 Valve Lift, 50.7 Open, 7.75 Close, 238 Duration @ 50, .110 lift @ TDC, 111.5 Lobe Centerline
Overlap: 16
*Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio

487 CAM - The 487 Reaper CHOP is a great all-around camshaft and Feulings go to for 4 1/2 stroke 114 - 117 looking for an agressive bolt-in. The 487 has that nasty CHOP idle sound while producing a wide powerband that the Feuling cams are known for. Responds very well to increased bore and or compression, exhaust system and air cleaner. Use of performance valve-springs is not required but may result in a quieter, smoother running valve-train See Feuling #1107 or #1108.

Intake: .478 Valve Lift, 20.5 Open, 37 Close, 237 Duration @ 50, .180 lift @ TDC, 98.5 Lobe Centerline
Exhaust: .487 Valve Lift, 44 Open, 17.5 Close, 241.5 Duration @ 50, .146 lift @ TDC, 103.25 Lobe Centerline
Overlap: 38

*Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio

508 CAM - The Grim Reaper Aggressive pulling power with a nasty sound. This camshaft revs up faster than the 521 grind, sounds nastier and pulls harder but is more difficult to tune. The REAPER 508 grind will shine in 114 and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. FEULING recommends matching this cam with our RACE SERIES oiling system.

NOTE: High Lift valve springs are required on stock cylinder heads, see FEULING BEEHIVE valve spring kit #1107 (DRAG# 0926-2973) or #1108 (DRAG# 0926-2974). SE cylinder heads have high lift valvesprings and will accept the 508 and 521 grind cam. Heavy Duty one piece pushrods are also highly recommended see #4087.

Part # 1349 RPM range 2,250 - 5,900. Grind: 508

.................. Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
Intake .508 20.5 BTDC 37 ABDC 237 .180 98.5
Exhaust .511 44 BBDC 17.5 ATDC 241.5 .146 103.25
Overlap: 38

*Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio

521 CAM - Aggressive pulling power with a nasty sound, the REAPER 521 grind will shine in 114 and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. FEULING recommends matching this cam with our RACE SERIES oiling system.

NOTE: High Lift valve springs are required on stock cylinder heads, see FEULING BEEHIVE valve spring kit #1107 (DRAG# 0926-2973) or #1108 (DRAG# 0926-2974). SE cylinder heads have high lift valvesprings and will accept the 508 and 521 grind cam. Heavy Duty one piece pushrods are also highly recommended see #4087.

Part # 1346 RPM range 2,250 - 6,250. Grind: 521

Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
Intake .518 17 BTDC 34 ABDC 231 .162 98.5
Exhaust .521 51.5 BBDC 11.5 ATDC 243 .125 110
Overlap: 28.5

*Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio

538 CAM - Aggressive camshaft with a nasty sound. This camshaft revs up fast and pulls hard in engines with big bore cylinders, modified cylinder heads, inake, compression and exhaust. The REAPER 538 grind will shine in 124 and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. FEULING recommends matching this cam with our RACE SERIES oiling system.

NOTE: High Lift valve springs are required on stock cylinder heads, see FEULING BEEHIVE valve spring kit #1107 (DRAG# 0926-2973) or #1108 (DRAG# 0926-2974). SE cylinder heads have high lift valvesprings but will need to be verified. Heavy Duty one piece pushrods are also highly recommended see #4087.

Part # 1351 RPM range 2,350 - 5,975. Grind: 538

..................Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
Intake .538 20.5 BTDC 38.5 ABDC 239 .180 99
Exhaust .542 48 BBDC 18 ATDC 246 .157 105
Overlap: 38

*Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio

592 CAM - The big nasty Put your big boy pants on get serious with bore size, ported cylinder heads/intake, high flow valves and throttle body. Aggressive camshaft requiring high lift and higher load valvesprings, performance pushrods and lifters. High flow air cleaner and triple stepped exhaust pipe highly recommended. FEULING also recommends matching this cam with our RACE SERIES oiling system #7097 or #7099.

NOTE: High lift/High Load valvesprings required see recommended Feuling HIGH LOAD BEEHIVE valvespring kit #1207 (DRAG# 0926-3138). Heavy duty pushrods #4087 (Drag# 0928-0091). Clearances MUST be checked when installing this cam. SE camplates #25400419 have been found to have clearance issues on high lift camshafts.

Part # 1348 RPM range 2,750 - 6,350. Grind: 592

...............Valve Lift Open Close Duration @ 50 TDC Lift Lobe Centerline
Intake .578 20 34 234 182 97
Exhaust .592 68 16 264 146 116
Overlap: 36

618 F CAM - RACE SERIES CAMSHAFT Requires large bore size, ported cylinder heads, ported intake manifold, high flow valves and large throttle body. Aggressive camshaft requiring high lift and higher load valvesprings see #1207, performance pushrods and lifters. High flow air cleaner and triple stepped exhaust pipe highly recommended. FEULING also recommends matching this cam with our RACE SERIES oiling system #7097 or #7099.

NOTE: High lift/High Load valvesprings required see recommended Feuling HIGH LOAD BEEHIVE valvespring kit #1207 (DRAG# 0926-3138). Heavy duty pushrods #4087 (Drag# 0928-0091). Clearances MUST be checked when installing this cam.

Part # 1352 RPM range 3,100 - 6,650. Grind: 618

...............Valve Lift Open Close Duration @ 50 TDC Lift Lobe Centerline
Intake .608 20 42 242 195 101
Exhaust .618 65 19 264 170 113
Overlap: 39
Lobe Separation: 107

Milwaukee Eight 17 - 24 Except VVT

Manufacturer's Warranty
