Hertz Compact Power HCP 4D D-Class Four Channel Amplifier
$455.00
In stock
Only 1 left
SKU
HZ-HCP4D

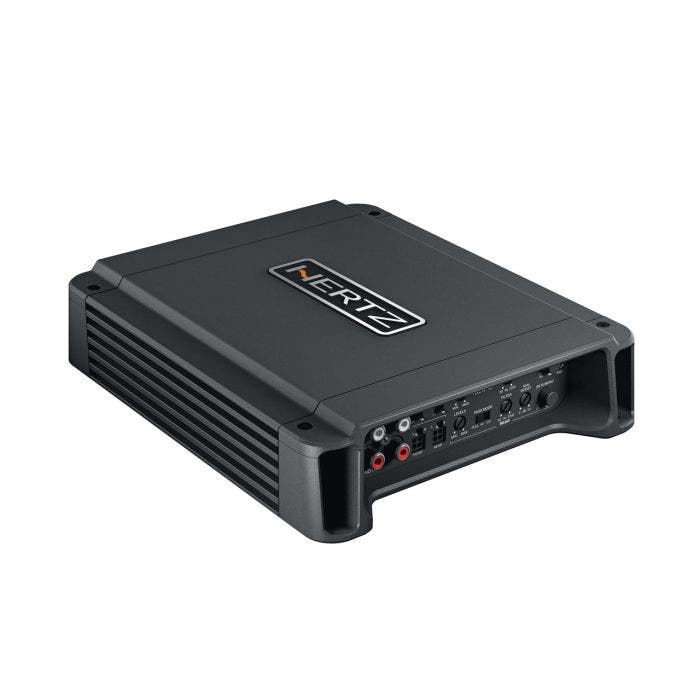

HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
Fits:
Fits:
Channel mode | 4 - 3 - 2 |
Output Power (RMS) @ 14.4 VDC |
4 Ch: 85 W x 4 (4 ?) 4 Ch: 145 W x 4 (2 ?) 3 Ch: 85 W x 2 (4 ?) + 290 W x 1 (4 ?) 3 Ch: 145 W x 2 (2 ?) + 290 W x 1 (4 ?) 2 Ch: 290 W x 2 (4 ?) |
Filters Bypass Hi-Pass Lo-Pass Band-Pass |
Yes A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. - |
Distortion - THD (100Hz @ 4Ω) |
0.02% |
S/N Ratio (A weighted @ 1V) |
100 dB |
Damping factor (100Hz @ 4Ω) |
200 |
Size W x D x H mm (in.) |
215 x 190 x 50 (8.46 x 7.48 x 1.97) |
Brand | Hertz Audio | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Finish | N/A | ||||||||||||||
Manufacturer Part No. | HCP 4D | ||||||||||||||
Fitment |
|
||||||||||||||
Additional Notes | CC | ||||||||||||||
Ships Within: | 5-7 Days |
Channel mode | 4 - 3 - 2 |
Output Power (RMS) @ 14.4 VDC |
4 Ch: 85 W x 4 (4 ?) 4 Ch: 145 W x 4 (2 ?) 3 Ch: 85 W x 2 (4 ?) + 290 W x 1 (4 ?) 3 Ch: 145 W x 2 (2 ?) + 290 W x 1 (4 ?) 2 Ch: 290 W x 2 (4 ?) |
Filters Bypass Hi-Pass Lo-Pass Band-Pass |
Yes A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. - |
Distortion - THD (100Hz @ 4Ω) |
0.02% |
S/N Ratio (A weighted @ 1V) |
100 dB |
Damping factor (100Hz @ 4Ω) |
200 |
Size W x D x H mm (in.) |
215 x 190 x 50 (8.46 x 7.48 x 1.97) |
All items covered by the manufacter's warranty
CC
