JL 4-inch (100 mm) 35 Watt Coaxial Speaker System
Coaxial Speaker System: 4-inch (100 mm) Woofer, 0.5-inch (12 mm) Textile Balanced Dome Tweeter
The Evolution TR systems have stood the test of time by delivering unsurpassed value and performance in their price class.
The TR400-CXi system features 4-inch (100 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

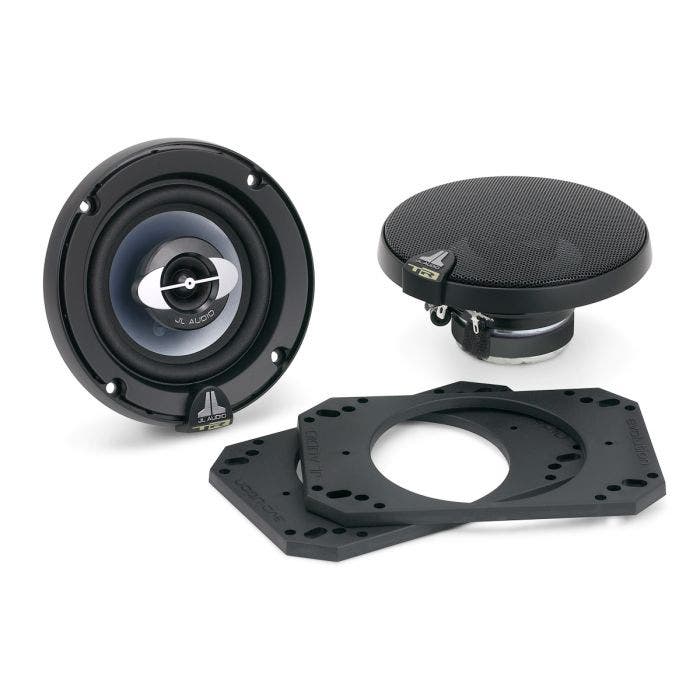

Breakaway mounting tabs on the woofer frame allow the TR400-CXi to be installed in four-hole or two-hole configurations. Injection-Molded adaptor plates are also included to allow mounting of the TR400-CXi speakers into a 4 x 6 (100 x 150 mm) speaker location.
Tweeters are coaxially mounted and built with 0.5-inch textile diaphragms that deliver clean response, on and off axis. The small size of the TR tweeter minimizes tweeter protrusion, allowing TR coaxials to fit behind most factory speaker grilles.
Speaker grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clear and Efficient
Sold as a pair.
Continuous Power Handling (RMS) | 35 W |
Peak Music Power | 105 W |
Recommended RMS Amplifier Power (per Ch.) | 10 - 50 W |
System Efficiency | 84.5 dB @ 1 W / 1 m |
System Nominal Impedance | 4 Ω |
System Frequency Response | 71 Hz - 22 KHz ± 3 dB |
Coaxial Speaker System: 4-inch (100 mm) Woofer, 0.5-inch (12 mm) Textile Balanced Dome Tweeter
The Evolution TR systems have stood the test of time by delivering unsurpassed value and performance in their price class.
The TR400-CXi system features 4-inch (100 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
Breakaway mounting tabs on the woofer frame allow the TR400-CXi to be installed in four-hole or two-hole configurations. Injection-Molded adaptor plates are also included to allow mounting of the TR400-CXi speakers into a 4 x 6 (100 x 150 mm) speaker location.
Tweeters are coaxially mounted and built with 0.5-inch textile diaphragms that deliver clean response, on and off axis. The small size of the TR tweeter minimizes tweeter protrusion, allowing TR coaxials to fit behind most factory speaker grilles.
Speaker grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clear and Efficient
Sold as a pair.
Continuous Power Handling (RMS) | 35 W |
Peak Music Power | 105 W |
Recommended RMS Amplifier Power (per Ch.) | 10 - 50 W |
System Efficiency | 84.5 dB @ 1 W / 1 m |
System Nominal Impedance | 4 Ω |
System Frequency Response | 71 Hz - 22 KHz ± 3 dB |
Fits: 1998-2014 Harley Touring Models with correct mounting locations or Automobiles
Note:
Brand | JL Audio |
---|---|
Manufacturer Part No. | TR400-Cxi |
Fitment | 1998-2014 Harley Touring Models with correct mounting locations or Automobiles |
Ships Within: | 5-7 Days |
1998-2014 Harley Touring Models with correct mounting locations or Automobiles
Manufacturer's Warranty
