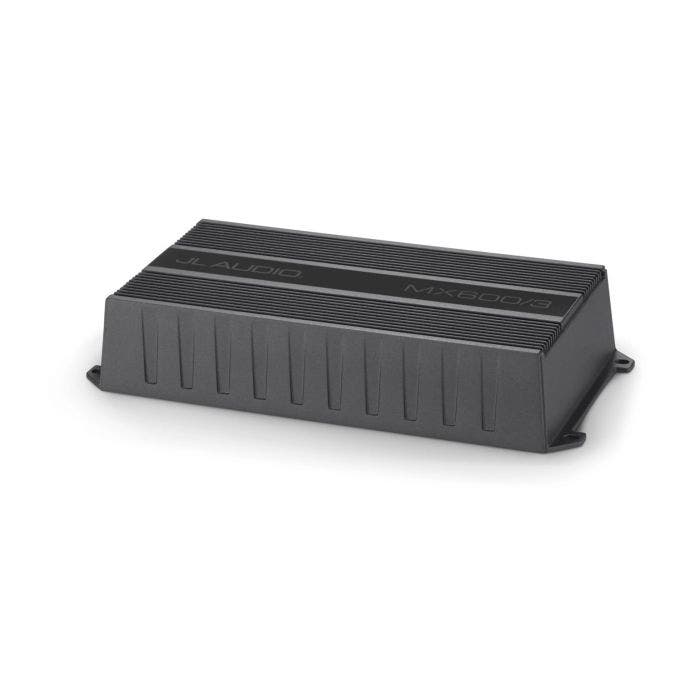

JL Audio 3 Ch. Class D System Amplifier, 600 W
3-Channel Class D System Amplifier, 100 W x 2 + 400 W x 1 @ 2 ? / 75 W x 2 + 250 W x 1 @ 4 ? - 14.4V
Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum housing is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a potent 75W x 2 into 4 ohms, plus a solid 400 watts for a subwoofer system, the MX600/3 makes a great all-in-one solution for driving a complete audio system from a single, ultra-compact chassis.
Onboard filters include a 12 dB / octave high-pass crossover on the main channels and a dedicated 24 dB / octave low-pass crossover for the subwoofer channel. Other features include a bass boost EQ, variable infrasonic filter and subwoofer output polarity switch. A dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
3-Channel Class D System Amplifier, 100 W x 2 + 400 W x 1 @ 2 ? / 75 W x 2 + 250 W x 1 @ 4 ? - 14.4V
Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum housing is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a potent 75W x 2 into 4 ohms, plus a solid 400 watts for a subwoofer system, the MX600/3 makes a great all-in-one solution for driving a complete audio system from a single, ultra-compact chassis.
Onboard filters include a 12 dB / octave high-pass crossover on the main channels and a dedicated 24 dB / octave low-pass crossover for the subwoofer channel. Other features include a bass boost EQ, variable infrasonic filter and subwoofer output polarity switch. A dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
| Brand | JL Audio |
|---|---|
| Machine Type | Marine / Boat |
| Finish | Chrome |
| Manufacturer Part No. | MX600/3 |
| Fitment | Universal |
| Additional Notes | This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability. |
| Ships Within: | 10+ Days |
Universal
Manufacturer's Warranty
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
