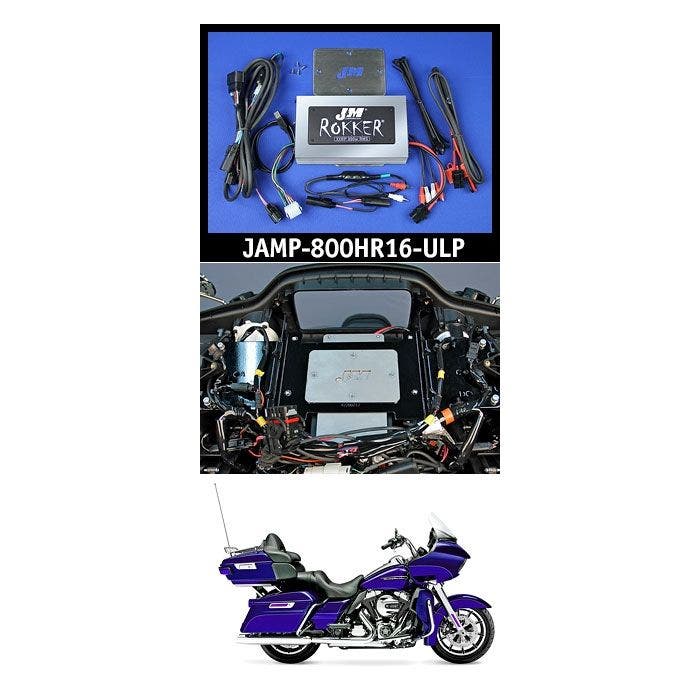

J&M ROKKER XXRP 800w Watt 4 Channel DSP Programmable Amp kit 16-20 FLTRU Ultra

4-ch 800w amplifier kit for 2014-2020 Harley® RoadGlide Ultra (NOT for CVO) with stock Harley 6.5GT or new GTS touch-screen radio, (NO SPECIAL FLASH needed).

Full range class D amplifier, spec'd at 200 watts RMS per channel X4, (800w total) into 2-ohm load @ 14.4vdc, (Manually selectable on the amplifier itself for a 2-ohm or 4-ohm speaker load) properly shielded against RF interference into the AM or FM radio.

Amplifier uses advanced digital switching power supply technology to dramatically reduce the 12v current demands on the motorcycle electrical system.

Amplifier mounts to custom made stainless steel 2-piece bracket system, to provide solid and secure mounting inside the fairing.

Amplifier is dialed-in for this specific Ultra speaker configuration, to provide maximum highway performance.
To alter these DSP settings using the internal programming dongle already built into this new amplifier, (USB computer connection cable included) our specific custom amplifier programs are now available as a consumer download from the J&M website, along with the custom Bike-Builder’s-App for those who want to fine tune their own specific amplifier adjustments.
Custom made plug-n-play wiring harnesses are included, along with heavy gauge power/ground wires for the fused battery connection, all necessary mounting hardware & complete installation/operation instructions.

Amplifier itself measures 8 1/4” Long X 5 1/8” Wide X 1 5/8” Tall.

Fits: 2016-2020 Harley-Davidson Road Glide Ultra- Non CVO

2016-2020 Harley-Davidson Road Glide Ultra- Non CVO

Manufacturer's Warranty
