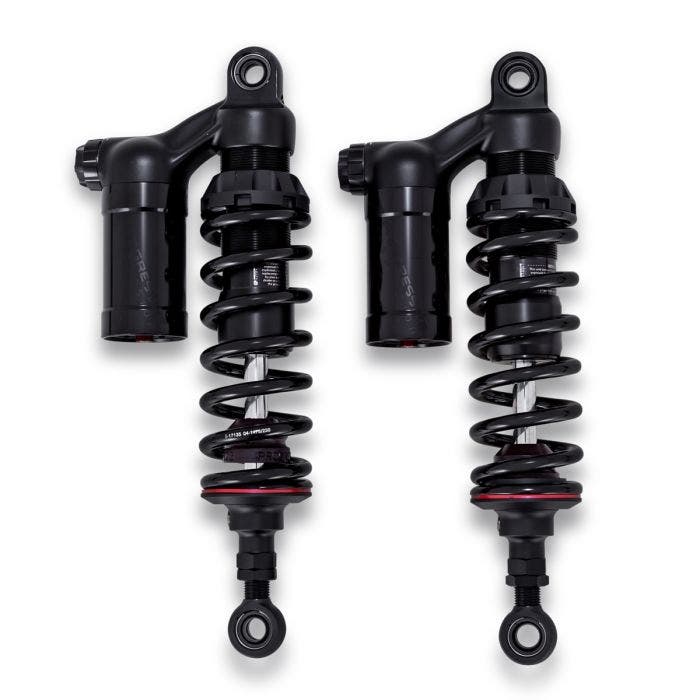

Progressive 13.5 Standard Sport Series PiggyBack Reservoir Shocks 91-05 Dyna FXD

Regular Price $1,723.95 Special Price $1,465.36
SKU
PR990-1011

The most adjustable shock in the V-Twin market, the 990 Sport series shock features complete adjustability with a 0.4” adjustable height eyelet, rebound damping adjustment, High & Low Speed compression damping adjustment via easily accessible knobs, and threaded hand adjustable spring preload. The 990 features a high-pressure monotube with deflective disc damping routed through two unique circuits delivering a consistent feel through the damper stroke for improved performance and stability. Our new and improved engineered jounce bumper features a captured design to help smooth and control bottoming.

Every shock is hand-built, tuned and dyno tested in our facility and come with a lifetime warranty. Engineered for aggressive sport inspired riders, the 990 sets the mark for excellence on your V-Twin motorcycle.

Specifications:

  • Lightweight Aluminum Body
  • Linear Rate Coil Spring
  • Standard and Spherical Bearing Mounts
  • 13.5" Standard Duty

Fits: 1991-2005 Harley-Davidson Dyna FXD Models

Model Notes: Shocks longer than recommended stock length may cause Axle/Shock/Swing arm to come in contact with exhaust system. Check clearances.

Target Ride Length (in): 12.4"

Target Ride Length is the length of the selected shocks, installed, and as measured between the upper and lower shock mounts, when the full weight of the rider(s) & gear are on the bike and ready to ride. This is a fast and easy way to set your rear suspension at optimum Ride Sag (1/3 of total suspension travel)

With the shocks selected above installed and the full weight of the rider(s) & gear on the bike as it will be ridden, measure the distance between the upper and lower shock mounts (center to center). If your measurement is less than the indicated Target Ride Length, increase the spring pre-load** to raise the bike until you achieve the Target Ride Length. If your measurement is more than the indicated Target Ride Length, reduce the spring pre-load** to lower the bike until you achieve the Target Ride Length. Achieving the Target Ride Length in this manner sets the rear suspension ride sag for optimum performance and comfort.

**Air pressure for 416 Series shocks.

The most adjustable shock in the V-Twin market, the 990 Sport series shock features complete adjustability with a 0.4” adjustable height eyelet, rebound damping adjustment, High & Low Speed compression damping adjustment via easily accessible knobs, and threaded hand adjustable spring preload. The 990 features a high-pressure monotube with deflective disc damping routed through two unique circuits delivering a consistent feel through the damper stroke for improved performance and stability. Our new and improved engineered jounce bumper features a captured design to help smooth and control bottoming.

Every shock is hand-built, tuned and dyno tested in our facility and come with a lifetime warranty. Engineered for aggressive sport inspired riders, the 990 sets the mark for excellence on your V-Twin motorcycle.

Specifications:

  • Lightweight Aluminum Body
  • Linear Rate Coil Spring
  • Standard and Spherical Bearing Mounts
  • 13.5" Standard Duty

Fits: 1991-2005 Harley-Davidson Dyna FXD Models

Model Notes: Shocks longer than recommended stock length may cause Axle/Shock/Swing arm to come in contact with exhaust system. Check clearances.

Target Ride Length (in): 12.4"

Target Ride Length is the length of the selected shocks, installed, and as measured between the upper and lower shock mounts, when the full weight of the rider(s) & gear are on the bike and ready to ride. This is a fast and easy way to set your rear suspension at optimum Ride Sag (1/3 of total suspension travel)

With the shocks selected above installed and the full weight of the rider(s) & gear on the bike as it will be ridden, measure the distance between the upper and lower shock mounts (center to center). If your measurement is less than the indicated Target Ride Length, increase the spring pre-load** to raise the bike until you achieve the Target Ride Length. If your measurement is more than the indicated Target Ride Length, reduce the spring pre-load** to lower the bike until you achieve the Target Ride Length. Achieving the Target Ride Length in this manner sets the rear suspension ride sag for optimum performance and comfort.

**Air pressure for 416 Series shocks.
More Information
Brand Progressive Suspension
Tucker Part # 778909
Manufacturer Part No. 990-1011
Fitment 1991-2005 Harley-Davidson Dyna FXD Models
Additional Notes EW
Ships Within: 2-4 Days

1991-2005 Harley-Davidson Dyna FXD Models

Manufacturer's Warranty

EW
