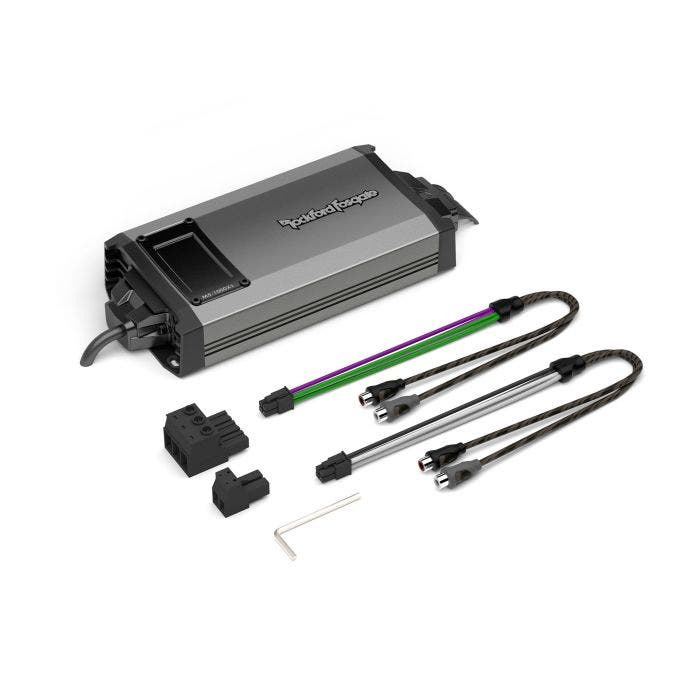

Rockford Fosgate 1000 Watt Mono Element Ready Amplifier IPX6 Motorcycle Marine

$629.99
Only 2 left
SKU
RF-M5-1000X1

Rockford Fosgate amplifiers are known world-wide for producing more power than their ratings suggest. The M5 amplifiers are the first series based on new industry standard Dynamic Power ratings, bringing their conservative ratings to the forefront. Engineered from the ground up and purpose-built to deliver more output where you actually hear it, this is real dynamic power that performs not only on paper, but performance heard through the musical experience. You’ll see two amplifier power ratings, the traditional Continuous Power output, and the new Dynamic Power output, both tested in accordance with the CTA-2006 specification. Consider Continuous Power as wattage developed on the test bench for comparison against other amplifiers in the same class, and Dynamic Power as real-world wattage when connected to a speaker load, listening to music. Either way you look at it, Rockford Fosgate is proving – once again – these amplifiers are powerful enough to drive any speaker or subwoofer you throw at them.

  • Element Ready™ with integrated harnesses for a watertight seal
  • PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
  • Play all day, easy to integrate, and keep music playing for extended lengths of time
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Constant Power provides instantaneous delivery of output over varying impedance loads
  • Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
  • Top mounted control panel with waterproof smoked lens
  • OEM and aftermarket radio integration inputs
  • Low Impedance Stability
  • Proprietary testing using RATS (Rockford Automated Testing System)
  • Class-BD technology provides 75-80% efficiency over traditional class A/B designs
  • Discrete Surface Mount technology utilizes 1% tight-tolerances for high efficiency and reduced cross-talk
  • MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
  • Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
  • Balanced Differential Inputs eliminates noise picked up by signal cables
  • Remote-Out feature when using high level inputs
  • 2-Year Warranty
CEA-2006 Compliant
Yes
Number Of Channels
Total Power
(Sum of Rated Power)
1000 Watts
Rated Power
(RMS Continuous Power)
CTA-2006 GuidelinesCTA-2006 Continuous Power Rating
500 Watts x 1 @ 4Ω
750 Watts x 1 @ 2Ω
750 Watts x 1 @ 1Ω
≤0.1% THD+N
Dynamic Power
(PVC/PowerCube®)
CTA-2006 GuidelinesCTA-2006 Dynamic Power Rating
525 Watts x 1 @ 4Ω
900 Watts x 1 @ 2Ω
1000 Watts x 1 @ 1Ω
Bridgeable
No
Frequency Response
30 Hz - 245 Hz
Input Sensitivity
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V
Circuit Topology Class
Class-BD
Efficiency (average)
>80%
Total Harmonic Distortion (THD+Noise)
4Ω: <1.0% (CTA-2006)
2Ω: <1.0%
Signal Input
Low-Level: 2 RCA
High-Level: 4-Pin Molex
Signal Output
-
Tone Controls
+18 dB @ 45 Hz
Crossover Controls
Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth

Infrasonic: 30 Hz @ 12dB/Octave Butterworth
Remote Controls
No
Visual Indicators
Power: Blue
Protect: Red
Input Clip: Red
Output Clip: Blue/Red
Power Wire Gauge
8 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
16 AWG
Speaker Output Connector
4-pin Molex to tinned bare wire
Cooling
Convection
Heatsink
Die Cast Aluminum
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
120 A
Average Current Draw (13.8V Music)
45 A
Max. Current Draw (13.8V Sinewave)
45 A @ 4Ω
75 A @ 2Ω
100 A @ 4Ω Bridged
Suggested Alternator
Dimensional Diagram
Dimensions (H x W x D)
1.7" x 4.25" x 8.41"
(42.8 mm x 108 mm x 213 mm)
Does not include harnesses
Shipping Weight
TBA

Rockford Fosgate amplifiers are known world-wide for producing more power than their ratings suggest. The M5 amplifiers are the first series based on new industry standard Dynamic Power ratings, bringing their conservative ratings to the forefront. Engineered from the ground up and purpose-built to deliver more output where you actually hear it, this is real dynamic power that performs not only on paper, but performance heard through the musical experience. You’ll see two amplifier power ratings, the traditional Continuous Power output, and the new Dynamic Power output, both tested in accordance with the CTA-2006 specification. Consider Continuous Power as wattage developed on the test bench for comparison against other amplifiers in the same class, and Dynamic Power as real-world wattage when connected to a speaker load, listening to music. Either way you look at it, Rockford Fosgate is proving – once again – these amplifiers are powerful enough to drive any speaker or subwoofer you throw at them.

  • Element Ready™ with integrated harnesses for a watertight seal
  • PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
  • Play all day, easy to integrate, and keep music playing for extended lengths of time
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Constant Power provides instantaneous delivery of output over varying impedance loads
  • Focused mass heat sink allows critical aluminum material to be located around hottest internal devices
  • Top mounted control panel with waterproof smoked lens
  • OEM and aftermarket radio integration inputs
  • Low Impedance Stability
  • Proprietary testing using RATS (Rockford Automated Testing System)
  • Class-BD technology provides 75-80% efficiency over traditional class A/B designs
  • Discrete Surface Mount technology utilizes 1% tight-tolerances for high efficiency and reduced cross-talk
  • MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
  • Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
  • Balanced Differential Inputs eliminates noise picked up by signal cables
  • Remote-Out feature when using high level inputs
  • 2-Year Warranty
CEA-2006 Compliant
Yes
Number Of Channels
Total Power
(Sum of Rated Power)
1000 Watts
Rated Power
(RMS Continuous Power)
CTA-2006 GuidelinesCTA-2006 Continuous Power Rating
500 Watts x 1 @ 4Ω
750 Watts x 1 @ 2Ω
750 Watts x 1 @ 1Ω
≤0.1% THD+N
Dynamic Power
(PVC/PowerCube®)
CTA-2006 GuidelinesCTA-2006 Dynamic Power Rating
525 Watts x 1 @ 4Ω
900 Watts x 1 @ 2Ω
1000 Watts x 1 @ 1Ω
Bridgeable
No
Frequency Response
30 Hz - 245 Hz
Input Sensitivity
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V
Circuit Topology Class
Class-BD
Efficiency (average)
>80%
Total Harmonic Distortion (THD+Noise)
4Ω: <1.0% (CTA-2006)
2Ω: <1.0%
Signal Input
Low-Level: 2 RCA
High-Level: 4-Pin Molex
Signal Output
-
Tone Controls
+18 dB @ 45 Hz
Crossover Controls
Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth

Infrasonic: 30 Hz @ 12dB/Octave Butterworth
Remote Controls
No
Visual Indicators
Power: Blue
Protect: Red
Input Clip: Red
Output Clip: Blue/Red
Power Wire Gauge
8 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
16 AWG
Speaker Output Connector
4-pin Molex to tinned bare wire
Cooling
Convection
Heatsink
Die Cast Aluminum
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
120 A
Average Current Draw (13.8V Music)
45 A
Max. Current Draw (13.8V Sinewave)
45 A @ 4Ω
75 A @ 2Ω
100 A @ 4Ω Bridged
Suggested Alternator
Dimensional Diagram
Dimensions (H x W x D)
1.7" x 4.25" x 8.41"
(42.8 mm x 108 mm x 213 mm)
Does not include harnesses
Shipping Weight
TBA
