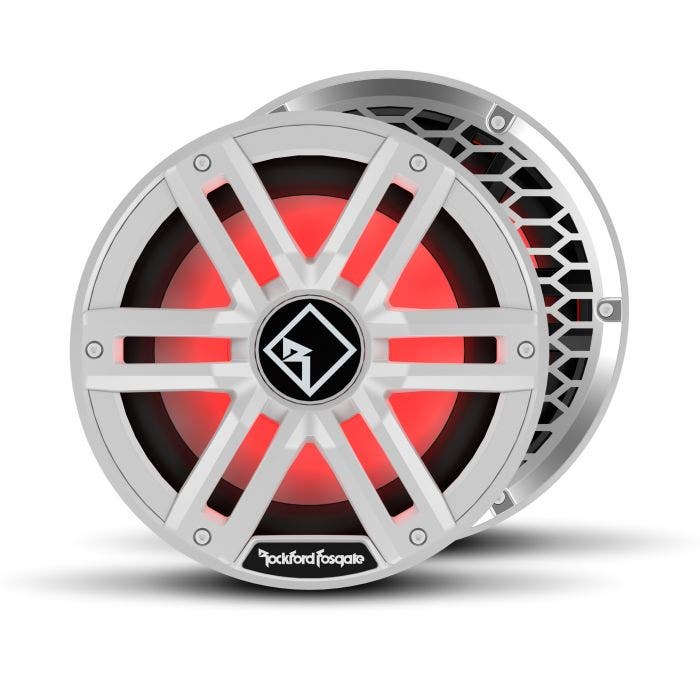

Rockford Fosgate M2D2-10I White 10" DVC 2Ω Color Infinite Baffle Marine Subwoofer

$399.99
Only 2 left
SKU
RF-M2D2-10I

The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. A mounting baffle isolates any interaction between the front and rear wavelengths to prevent cancellation.

  • 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
  • Gold-plated Marine grade connection terminals
  • Proprietary Dual Function Input option
  • Integrated Deutsch™/Amphenol™ RGB and Speaker inputs
  • Vented motor design with water-repelling nano coated mesh screen
  • 100% UV Stable Centrex plastic grill
  • Linear Aramid-Polyester Composite Spider
  • Fully insulated silicone tinsel leads
  • Injection molded UV stable foam surround
  • VAST vertical attach surround technique
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Co-molded surround and mineral filled polypropylene cone body
  • Optically clear UV stable RGB Lighting Encapsulation
  • Ultra Bright Wide Angle Tri Color (RGB) SMT LED's with Flat Mold Lenses
  • Integrated impedance selector switch
  • Optimized for infinite baffle installations
  • 2-Year Warranty
Size
10"
Nominal Impedance (Ohms)
1-Ohm or 4-Ohm Switchable
Power Handling (Watts RMS)
400 Watts RMS
1600 Watts PEAK
Voice Coil Diameter
2.0" (50.8 mm)
Magnet Weight (oz)
55.02 oz. (1.56 Kg)
Frequency Response
20 Hz - 750 Hz
Fs (Hz)
43
Re (Ohms)
3.3
Le (mH)
1.17
Qms
5.69
Sd (cm2)
363
Qes
0.86
Qts
0.74
Vas
30.5
SPL (dB @ 1w/1m)
90.3
Xmax (mm)
11.0
Woofer Displacement
4.20 (0.15 Liters)
Speaker Connector
Deutsch™
Cutout Diameter
8.87" (225.3 mm)
Mounting Depth
4.44" (112.7 mm)
Shipping Weight
11.9 Lbs. (5.26 Kg)

The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. A mounting baffle isolates any interaction between the front and rear wavelengths to prevent cancellation.

  • 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
  • Gold-plated Marine grade connection terminals
  • Proprietary Dual Function Input option
  • Integrated Deutsch™/Amphenol™ RGB and Speaker inputs
  • Vented motor design with water-repelling nano coated mesh screen
  • 100% UV Stable Centrex plastic grill
  • Linear Aramid-Polyester Composite Spider
  • Fully insulated silicone tinsel leads
  • Injection molded UV stable foam surround
  • VAST vertical attach surround technique
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Co-molded surround and mineral filled polypropylene cone body
  • Optically clear UV stable RGB Lighting Encapsulation
  • Ultra Bright Wide Angle Tri Color (RGB) SMT LED's with Flat Mold Lenses
  • Integrated impedance selector switch
  • Optimized for infinite baffle installations
  • 2-Year Warranty
Size
10"
Nominal Impedance (Ohms)
1-Ohm or 4-Ohm Switchable
Power Handling (Watts RMS)
400 Watts RMS
1600 Watts PEAK
Voice Coil Diameter
2.0" (50.8 mm)
Magnet Weight (oz)
55.02 oz. (1.56 Kg)
Frequency Response
20 Hz - 750 Hz
Fs (Hz)
43
Re (Ohms)
3.3
Le (mH)
1.17
Qms
5.69
Sd (cm2)
363
Qes
0.86
Qts
0.74
Vas
30.5
SPL (dB @ 1w/1m)
90.3
Xmax (mm)
11.0
Woofer Displacement
4.20 (0.15 Liters)
Speaker Connector
Deutsch™
Cutout Diameter
8.87" (225.3 mm)
Mounting Depth
4.44" (112.7 mm)
Shipping Weight
11.9 Lbs. (5.26 Kg)
More Information
Brand Rockford Fosgate
Finish White
Speaker Type 2-OHM 10" Subwoofer Each
Wattage 400 Watts RMS & 1600 Watts Max
Manufacturer Part No. M2D2-10I
Fitment 10"
Additional Notes cc
Ships Within: 5-7 Days

10"

2 Year Warranty
