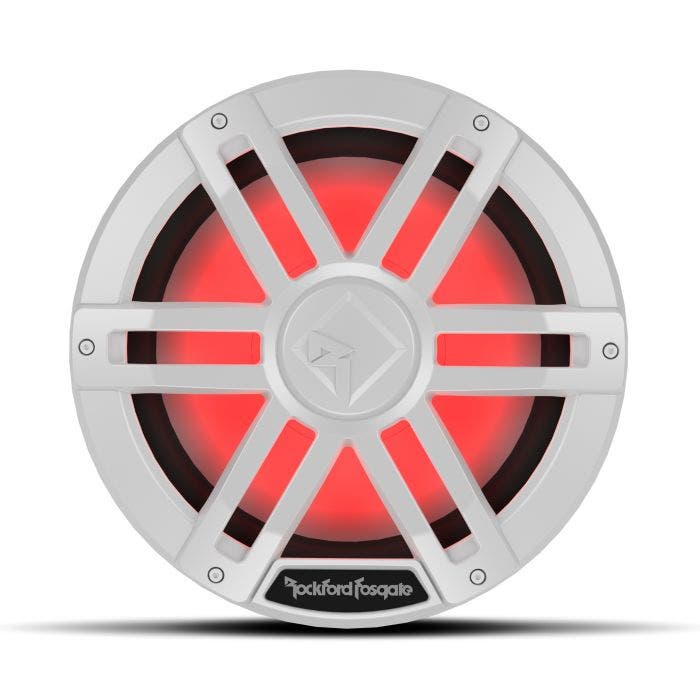

Rockford Fosgate M1D4-12 White 12" DVC 4Ω Color Optix Marine Subwoofer 300W

$269.99
Only 2 left
SKU
RF-M1D4-12

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch.

  • Optically clear UV stable RGB Lighting Encapsulation
  • Ultra Bright Wide Angle Tri Color (RGB) SMT LED's with Flat Mold Lenses
  • Vented motor design with water-repelling nano coated mesh screen
  • 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • Fully insulated silicone tinsel leads
  • 100% UV Stable ASA plastic Frame & Grill
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Proprietary Dual Function Input option
  • Integrated Deutsch™/Amphenol™ RGB and Speaker inputs
  • Linear Synthetic Fiber Blend Spiders
  • Santoprene VAST Surround
  • VAST vertical attach surround technique
  • Co-molded surround and mineral filled polypropylene cone body
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Integrated impedance selector switch
  • 2-Year Warranty
Size
12"
Nominal Impedance (Ohms)
2-Ohm or 8-Ohm Switchable
Power Handling (Watts RMS)
300 Watts RMS
1200W PEAK
Voice Coil Diameter
2" (50 mm)
Magnet Weight (oz)
39.75 oz. (1.13 Kg)
Frequency Response
20 Hz - 750 Hz
Fs (Hz)
27
Re (Ohms)
7.6
Le (mH)
3.40
Sd (cm2)
585.4
Qms
8.20
Qes
0.63
Qts
0.59
Vas
113.1
SPL (dB @ 1w/1m)
92
Xmax (mm)
6.0
Woofer Displacement
3.49 (0.12 Liters)
Speaker Connector
Deutsch™
Cutout Diameter
10.85" (275.6 mm)
Mounting Depth
6.65" (169.1 mm)
Shipping Weight
9 Lbs. (4.1 Kg.)

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch.

  • Optically clear UV stable RGB Lighting Encapsulation
  • Ultra Bright Wide Angle Tri Color (RGB) SMT LED's with Flat Mold Lenses
  • Vented motor design with water-repelling nano coated mesh screen
  • 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
  • Fully insulated silicone tinsel leads
  • 100% UV Stable ASA plastic Frame & Grill
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Proprietary Dual Function Input option
  • Integrated Deutsch™/Amphenol™ RGB and Speaker inputs
  • Linear Synthetic Fiber Blend Spiders
  • Santoprene VAST Surround
  • VAST vertical attach surround technique
  • Co-molded surround and mineral filled polypropylene cone body
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Integrated impedance selector switch
  • 2-Year Warranty
Size
12"
Nominal Impedance (Ohms)
2-Ohm or 8-Ohm Switchable
Power Handling (Watts RMS)
300 Watts RMS
1200W PEAK
Voice Coil Diameter
2" (50 mm)
Magnet Weight (oz)
39.75 oz. (1.13 Kg)
Frequency Response
20 Hz - 750 Hz
Fs (Hz)
27
Re (Ohms)
7.6
Le (mH)
3.40
Sd (cm2)
585.4
Qms
8.20
Qes
0.63
Qts
0.59
Vas
113.1
SPL (dB @ 1w/1m)
92
Xmax (mm)
6.0
Woofer Displacement
3.49 (0.12 Liters)
Speaker Connector
Deutsch™
Cutout Diameter
10.85" (275.6 mm)
Mounting Depth
6.65" (169.1 mm)
Shipping Weight
9 Lbs. (4.1 Kg.)
More Information
Brand Rockford Fosgate
Speaker Type 4-OHM 12" Subwoofer Each
Wattage 300 Watts RMS 1200W PEAK
Manufacturer Part No. M1D4-12
Fitment 12"
Additional Notes cc
Ships Within: 5-7 Days

12"

2 Year Warranty

cc
