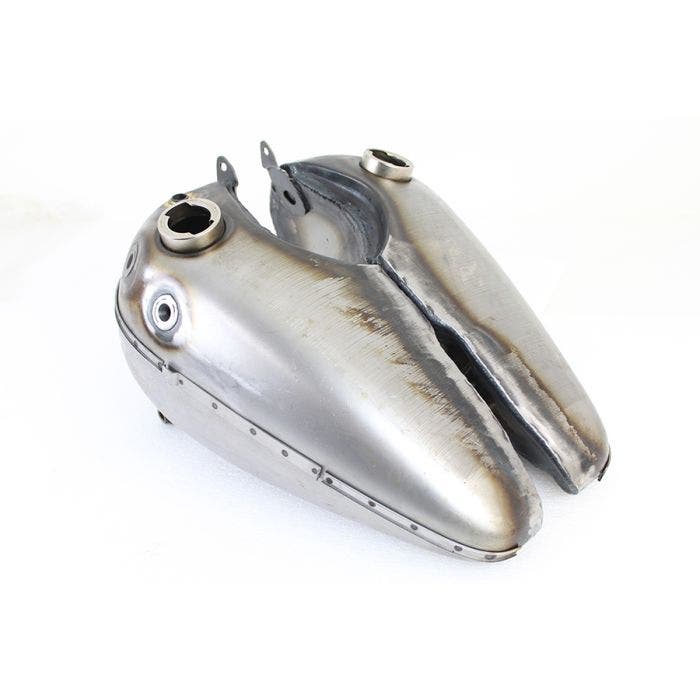

V-Twin 38-0136 Bobbed 3.5 Gallon Gas Tank Set 3/8 Axle Cateye Harley UL FL 40-46
This two piece gas tank set has a fuel capacity of 3.5 gallons. Tanks set accepts a 3/8" axle and cateye dashes only.
Tank set features handshift mounts and shut off rod provision.
Order shut off rod and seat kit separately.
Mount strips are welded to each side to attach emblems and stainless trim.
Order emblems and trim separately.
Tank may require fuel rod alignment before installation of shut off assembly.
Check the tank for flaws or fit before painting.
Do not grind or sand the seams or joints.
Clean the inside of the tank.
It is suggested to pressure test and use a tank sealer.
We suggest using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks and prevent corrosion.
Check shutoff opening, making sure the shut off valve can be easily installed.
Shut off fitting should be masked or plugged during painting for easy installation of shut off valve.
All tanks or tank sets will require hand fitting to give correct alignment for dash and fuel line fitment.
Dash will also have to be shimmed when installed, to achieve correct height.
- Top Length: 18-1/4"
- Bottom Length: 17-3/4"
- Rear Width: 1-1/2"
This two piece gas tank set has a fuel capacity of 3.5 gallons. Tanks set accepts a 3/8" axle and cateye dashes only.
Tank set features handshift mounts and shut off rod provision.
Order shut off rod and seat kit separately.
Mount strips are welded to each side to attach emblems and stainless trim.
Order emblems and trim separately.
Tank may require fuel rod alignment before installation of shut off assembly.
Check the tank for flaws or fit before painting.
Do not grind or sand the seams or joints.
Clean the inside of the tank.
It is suggested to pressure test and use a tank sealer.
We suggest using Kreem gas tank combo kit to clean, condition, and seal to help stop leaks and prevent corrosion.
Check shutoff opening, making sure the shut off valve can be easily installed.
Shut off fitting should be masked or plugged during painting for easy installation of shut off valve.
All tanks or tank sets will require hand fitting to give correct alignment for dash and fuel line fitment.
Dash will also have to be shimmed when installed, to achieve correct height.
- Top Length: 18-1/4"
- Bottom Length: 17-3/4"
- Rear Width: 1-1/2"
Fits:
- 1940-1946 Harley-Davison UL
- 1941-1946 Harley-Davison FL
Brand | V-Twin |
---|---|
Manufacturer Part No. | 38-0136 |
Fitment |
|
Additional Notes | cc |
Ships Within: | 5-7 Days |
- 1940-1946 Harley-Davison UL
- 1941-1946 Harley-Davison FL
