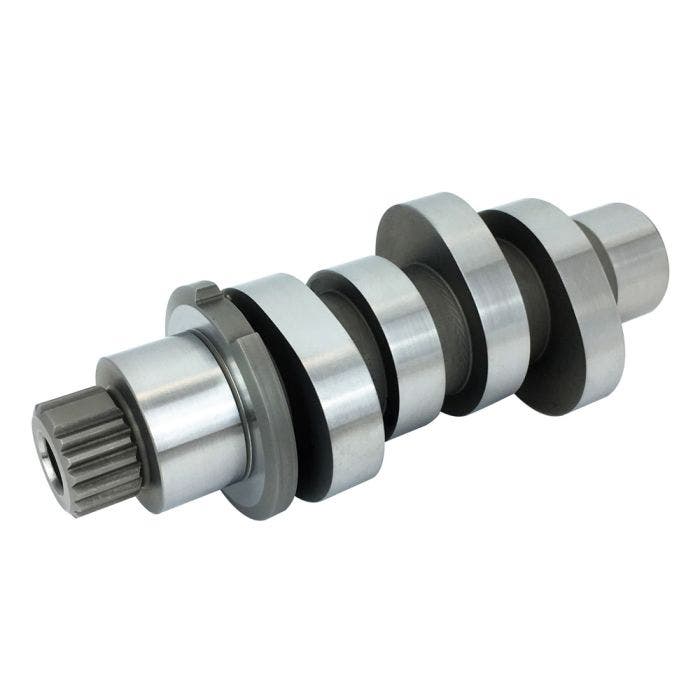

Feuling 592 Grind Chain Drive Camshaft Harley Milwaukee-Eight M8 17-Up 1348
592 CAM - The big nasty Put your big boy pants on get serious with bore size, ported cylinder heads and throttle body. Aggressive camshaft requiring high lift and higher load valvesprings, performance pushrods and lifters. High flow air cleaner and triple stepped exhaust pipe highly recommended. FEULING also recommends matching this cam with our RACE SERIES oiling system #7097 (DS09320199) or #7099 (DS09320218). High lift High Load valve springs are required, see FEULING BEEHIVE valve spring kit #1207 (DS09263138). Heavy duty pushrods are highly recommended see #4087.
Part # 1348 (DS09251265) RPM range 2,850 - 6,250. Grind: 592
Valve Lift Open Close Duration @ 50 TDC Lift Lobe Centerline
Intake .578 20 34 234 182 97
Exhaust .592 68 16 264 146 116
Overlap: 36
DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE
Feuling® does not recommend tuning beyond stock emissions standards.
592 CAM - The big nasty Put your big boy pants on get serious with bore size, ported cylinder heads and throttle body. Aggressive camshaft requiring high lift and higher load valvesprings, performance pushrods and lifters. High flow air cleaner and triple stepped exhaust pipe highly recommended. FEULING also recommends matching this cam with our RACE SERIES oiling system #7097 (DS09320199) or #7099 (DS09320218). High lift High Load valve springs are required, see FEULING BEEHIVE valve spring kit #1207 (DS09263138). Heavy duty pushrods are highly recommended see #4087.
Part # 1348 (DS09251265) RPM range 2,850 - 6,250. Grind: 592
Valve Lift Open Close Duration @ 50 TDC Lift Lobe Centerline
Intake .578 20 34 234 182 97
Exhaust .592 68 16 264 146 116
Overlap: 36
DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE
Feuling® does not recommend tuning beyond stock emissions standards.
Brand | Feuling |
---|---|
Drag Part # | 0925-1265 |
Manufacturer Part No. | 1348 |
Fitment | 2017-Up Harley-Davidson Milwaukee Eight |
Additional Notes | BI |
Ships Within: | 24 Hrs |
2017-Up Harley-Davidson Milwaukee Eight
Manufacture's Warranty
BI
