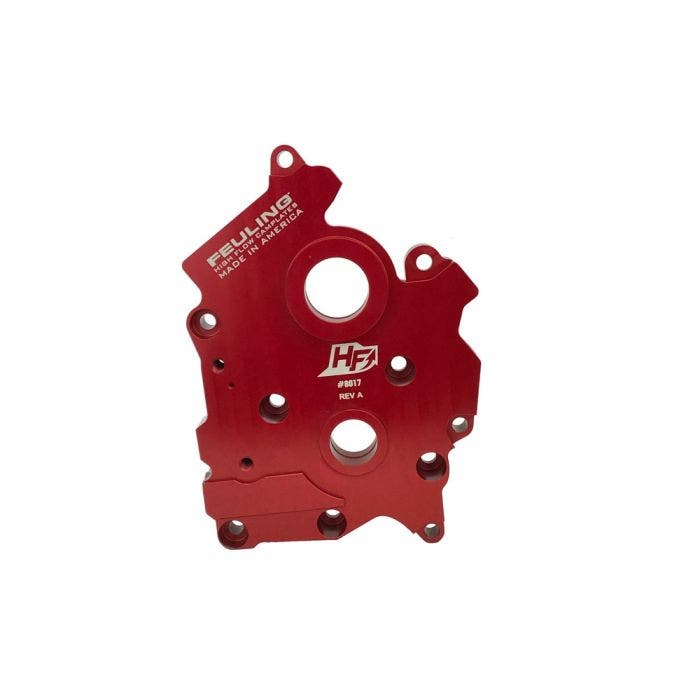

Feuling 8017 Red Billet Aluminum High Flow Cam Plate Kit 17-18 Harley M8
IN BRAND NEW CONDITION
PART # 8017
DRAG PART # 0932-0192
Fits: 2017 Harley-Davidson Milwaukee Eight Engines with HP+ or RS series oil pumps ONLY
HIGH FLOW CAMPLATES FOR MILWAUKEE EIGHT
• Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including the scavenge return holes from the pump to the camplate and into the engine case. This camplate also matches the oil port holes throughout the camplate to the port holes in the engine case increasing engine oil flow throughout the engine.
• Increased and optimized passages, port holes and galleys requiring them to be matched up to a FEULING HIGH FLOW camplate #8017
• 42% more scavenge volume with matched passages, port sizing and holes to the engine case
• 68% more oil volume to the crankshaft and connecting rod bearing
• 15-25 degree cooler engine temperatures and 15-25 cooler oil temperatures.
• 7075 billet aluminum which is 50% harder and stronger than the factory cast and Feuling OE+ camplates. The 7075 increases the strength and hardness of the camplate, holding tighter tolerances under temperature eliminating flexing and the need for bronze bushings as 7075 material has excellent bearing like properties.
• Tighter cam journal bore tolerance for improved cam fitment
• Added Cam journal oil groove for cold start up protection and increased cam journal lubrication
• Added oil pressure feed holes to front and back of cam journal to prevent excessive thrusting wear
• When matched with the Feuling® Race Series Oil Pump rear wheel power gains of 2 Horsepower and 2 ft/lbs of Torque are achieved.
• Bolts into stock location
• Optional FEULING X ARP bolt kit available for the HIGHFLOW camplate #8017 and HP+ or RS oil pump combo. See bolts part #8022 (DS24010993), ARP oil pump bolts do not use washers.
• Made in the U.S.A.
*Note: Gear drive cam requires block off plate
IN BRAND NEW CONDITION
PART # 8017
DRAG PART # 0932-0192
Fits: 2017 Harley-Davidson Milwaukee Eight Engines with HP+ or RS series oil pumps ONLY
HIGH FLOW CAMPLATES FOR MILWAUKEE EIGHT
• Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including the scavenge return holes from the pump to the camplate and into the engine case. This camplate also matches the oil port holes throughout the camplate to the port holes in the engine case increasing engine oil flow throughout the engine.
• Increased and optimized passages, port holes and galleys requiring them to be matched up to a FEULING HIGH FLOW camplate #8017
• 42% more scavenge volume with matched passages, port sizing and holes to the engine case
• 68% more oil volume to the crankshaft and connecting rod bearing
• 15-25 degree cooler engine temperatures and 15-25 cooler oil temperatures.
• 7075 billet aluminum which is 50% harder and stronger than the factory cast and Feuling OE+ camplates. The 7075 increases the strength and hardness of the camplate, holding tighter tolerances under temperature eliminating flexing and the need for bronze bushings as 7075 material has excellent bearing like properties.
• Tighter cam journal bore tolerance for improved cam fitment
• Added Cam journal oil groove for cold start up protection and increased cam journal lubrication
• Added oil pressure feed holes to front and back of cam journal to prevent excessive thrusting wear
• When matched with the Feuling® Race Series Oil Pump rear wheel power gains of 2 Horsepower and 2 ft/lbs of Torque are achieved.
• Bolts into stock location
• Optional FEULING X ARP bolt kit available for the HIGHFLOW camplate #8017 and HP+ or RS oil pump combo. See bolts part #8022 (DS24010993), ARP oil pump bolts do not use washers.
• Made in the U.S.A.
*Note: Gear drive cam requires block off plate
| Brand | Feuling |
|---|---|
| Drag Part # | 0932-0192 |
| Manufacturer Part No. | 8017 |
| Fitment | 2017 Harley-Davidson Milwaukee Eight Engines with HP+ or RS series oil pumps ONLY |
| Additional Notes | BI |
| Ships Within: | 24 Hrs |
2017 Harley-Davidson Milwaukee Eight Engines with HP+ or RS series oil pumps ONLY
Manufacture's Warranty
BI
-
