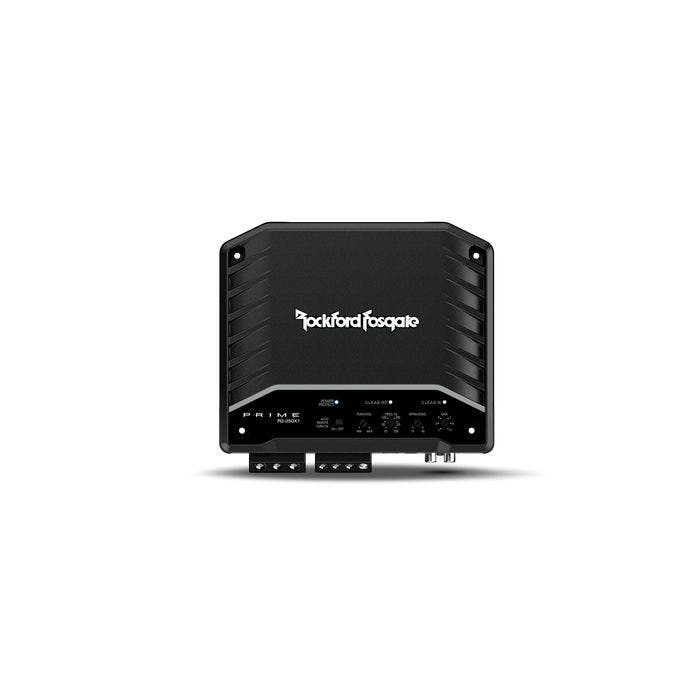

Rockford Fosgate Prime 250 Watt Mono Channel Amplifier R2-250X1

$229.99
SKU
RF-R2-250X1

Primed for Performance, the R2-250X1 is a 250 watt, Class-D amplifier, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system.

The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. Perfect for subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.

  • Balanced Differential Inputs with RCA Pass Through Outputs
  • High Level Input Capable
  • Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
  • Variable Input Gain adjustment level
  • Features C.L.E.A.N. Set-up
  • Includes RLC Remote Level Control
  • Variable Infrasonic Filter
  • Continuously Variable On Board Punch EQ
  • Top Mounted Control Panel
  • Short Circuit & Over Current Protection
  • CEA-2006 Compliant & CE Compliant
  • Cast aluminum heat sink
  • Class-D Topology
  • Rollback Protection
  • Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
  • 1 Year Warranty
Number of Channels
1
Total Power
(Sum of Rated Power)
250 Watts
Rated Power
(RMS Continuous Power)
160 Watts x 1 @ 4Ω
250 Watts x 1 @ 2Ω
Dynamic Power
(PVC/PowerCube®)
209 Watts x 1 @ 4Ω
328 Watts x 1 @ 2Ω
Bridgeable
No
Frequency Response
20 Hz - 250 Hz
Input Sensitivity
Low-Level: 150 mV - 4 V
High-Level: 450 mV - 12 V
Circuit Topology Class
Class-D
Efficiency (average)
Total Harmonic Distortion (THD+Noise)
4Ω: <1.0%
2Ω: <1.0%
Signal Input
Low-Level: 2 RCA
High-Level: 4-Pin Molex
Signal Output
Low-Level: 2 RCA
(Pass-Thru active with RCA or Hi-Level input)
Tone Controls
0 to +18 dB @ 45 Hz
Crossover Controls
Low-Pass:
50 Hz - 250 Hz @ 12dB/Octave Butterworth

Infrasonic:
15 Hz - 40 Hz @ 12dB/Octave Butterworth
Power Wire Gauge
4 AWG
Power Input Connector
Compression Terminal Block
Speaker Wire Gauge
8 AWG
Speaker Output Connector
Compression Terminal Block
Cooling
Convection
Heatsink
Operating Voltage
9 - 16 VDC
Recommended Fuse
(not included)
50 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sinewave)
30 V
Suggested Alternator
Dimensional Diagram
Dimensions (H x W x D)
1.9" x 6.8" x 8.1"
(4.9 cm x 17.3 cm x 20.5 cm)
