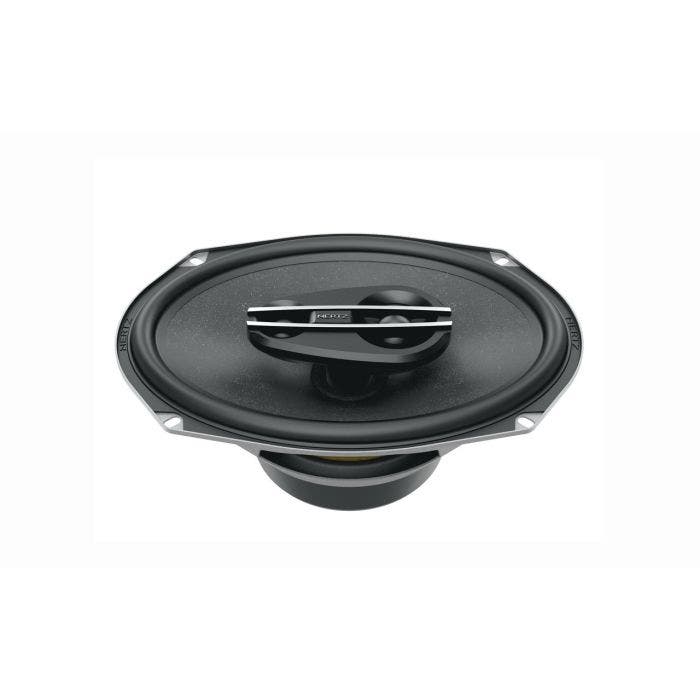

Hertz Cento CX 690 Coaxial 6x9 4 Ohm 300W 3-Way Speaker Tweeter Pair w/ Grilles
The three-way elliptical coax CX 690 featuring a 6×9 in. cone was designed to achieve maximum performance in horizontal installations and offering, even in this difficult condition, an exceptional tone balance and power handling.
1. 6x9 in. semi-pressed paper elliptical cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
2. Wide rubber suspension engineered for a long excursion and excellent sound damping.
3. High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
4. Basket with metallic finish acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
5. 40 mm (1.58 in.) dome tweeter for efficient distortion-free mid-high frequency reproduction.
6. 20 mm (0.8 in.) dome supertweeter to maximize the level of very high frequencies in horizontal installations.
7. Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
8. Provided elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
Sold In Pairs
The three-way elliptical coax CX 690 featuring a 6×9 in. cone was designed to achieve maximum performance in horizontal installations and offering, even in this difficult condition, an exceptional tone balance and power handling.
1. 6x9 in. semi-pressed paper elliptical cone SPP-M (Semi Pressed Paper-Mica) enhanced with Mica powder for an excellent balance between lightness and damping.
2. Wide rubber suspension engineered for a long excursion and excellent sound damping.
3. High-density flux ferrite magnet combined with low-carbon polar plates for reduced distortion at high power levels.
4. Basket with metallic finish acoustically combined with a rubber magnet cover for total damping of spurious vibrations.
5. 40 mm (1.58 in.) dome tweeter for efficient distortion-free mid-high frequency reproduction.
6. 20 mm (0.8 in.) dome supertweeter to maximize the level of very high frequencies in horizontal installations.
7. Tweeter faceplate geometry optimized with FEM simulations (Finite Element Modeling), to provide an extremely linear frequency response in off-axis installations.
8. Provided elegant grille made with high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.
Sold In Pairs
Brand | Hertz Audio | ||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Finish | N/A | ||||||||||||||||||||||||||||||
Manufacturer Part No. | CX 690 | ||||||||||||||||||||||||||||||
Fitment |
|
||||||||||||||||||||||||||||||
Additional Notes | CC | ||||||||||||||||||||||||||||||
Ships Within: | 5-7 Days |
Power Handling - Peak W | 300 |
Power Handling - Continuous W | 100 |
Impedance Ω | 4 |
Frequency response Hz | 40 ÷ 23k |
Sensitivity dB SPL | 93,5 |
Woofer size mm (in.) | (6 x 9) |
Tweeter size mm (in.) | 40 (1.58) |
Supertweeter size mm (in.) | 20 (0.8) |
Woofer Voice Coil Ø mm (in.) | 30 (1.2) |
Tweeter voice coil Ø mm (in.) | 28 (1.1) |
Woofer magnet | High density flux ferrite |
Tweeter magnet | Neodymium |
Woofer cone | Semi Pressed Paper-Mica |
Tweeter dome | PEI |
Supertweeter dome | PEI |
All items covered by the manufacter's warranty
