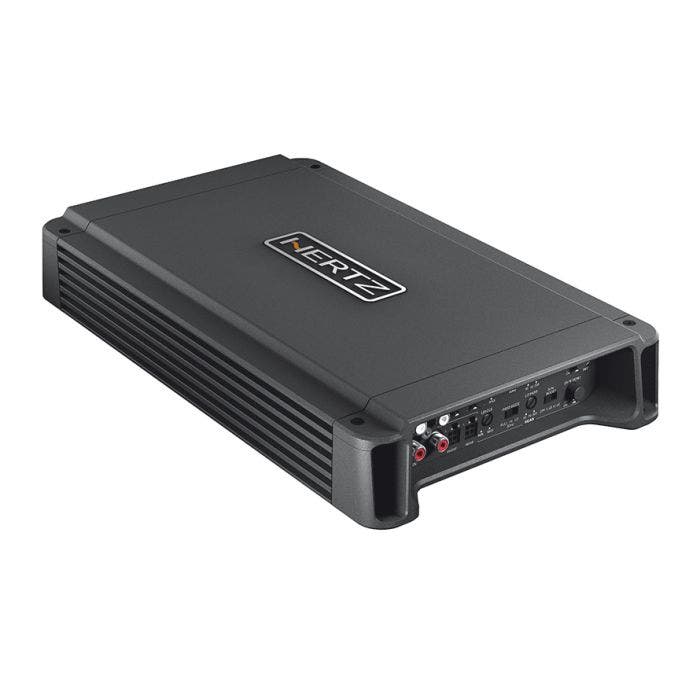

Hertz Compact Power HCP 4DK High Power D-Class Four Channel Amplifier

The new HCP 4DK features latest generation D-Class 2? stable output stage reaching the impressive max power of 2000 W with the excellent S/N ratio of 105 dB. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

Fits:

Channel mode	4 - 3 - 2
Output Power (RMS)  @ 14.4 VDC	4 Ch: 150 W x 4 (4 Ω) 4 Ch: 250 W x 1 (2 Ω) 3 Ch: 150 W x 2 (4 Ω) + 520 W x 1 (4 Ω) 3 Ch: 250 W x 2 (2 Ω) + 520 W x 1 (4 Ω) 2 Ch: 520 W x 2 (4 Ω)
Filters Bypass Hi-Pass Lo-Pass Band-Pass Subsonic	Yes A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. - No
Distortion - THD  (100Hz @ 4Ω)	0.03%
S/N Ratio  (A weighted @ 1V)	105 dB
Damping factor  (100Hz @ 4Ω)	200
Size W x D x H  mm (in.)	315 x 190 x 50 (12.40 x 7.48 x 1.97)

Channel mode	4 - 3 - 2
Output Power (RMS)  @ 14.4 VDC	4 Ch: 150 W x 4 (4 Ω) 4 Ch: 250 W x 1 (2 Ω) 3 Ch: 150 W x 2 (4 Ω) + 520 W x 1 (4 Ω) 3 Ch: 250 W x 2 (2 Ω) + 520 W x 1 (4 Ω) 2 Ch: 520 W x 2 (4 Ω)
Filters Bypass Hi-Pass Lo-Pass Band-Pass Subsonic	Yes A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct. - No
Distortion - THD  (100Hz @ 4Ω)	0.03%
S/N Ratio  (A weighted @ 1V)	105 dB
Damping factor  (100Hz @ 4Ω)	200
Size W x D x H  mm (in.)	315 x 190 x 50 (12.40 x 7.48 x 1.97)

All items covered by the manufacter's warranty
