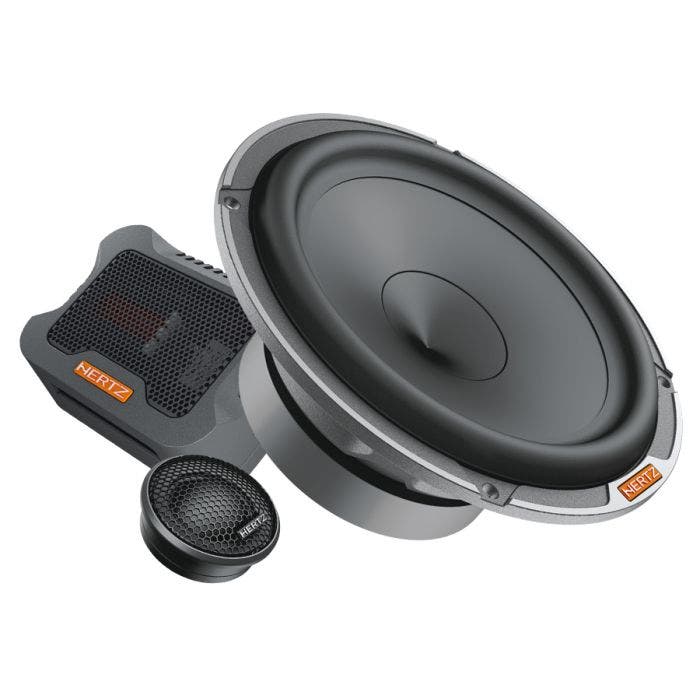

Hertz Mille MPK 165P.3 PRO Speaker Tweeter Crossover System

The MPK 165P.3 car audio speakers system energy in the mid-low range ensures a unique listening experience, creating the ideal set up alongside a powerful subwoofer section. The MP 165P.3 woofer electroacoustic parameters have been forged to give it the pure and solid sound of an authentic mid-bass, designed for high dynamic systems. The MPK 165P.3 timbre balance is entrusted to the MPCX 2P.3 crossover featuring a copper inductor with a 1 mm diameter wire to filter the MP 165P.3, which, with its nominal 3 ? requires high impulse currents. The tweeter MP 25.3 12dB/Octave crossover is built with extremely high quality 160V bi-metallized polyester film capacitor and an air coil inductor. The tweeter (MP 25.3) level control (0/+2.5dB) provides the ability to adapt the system response to the listener preferences and considering the components installation position.

Fits:

Power Handling - Peak W	230
Power Handling - ContinuousW	115
Impedance ?	3
Frequency response Hz	45 ÷ 22,5k
Sensitivity dB SPL	93
Voice coil Ø mm (in.)	25 (1)
Woofer size mm (in.)	165 (6.5)
Tweeter size mm (in.)	29 (1.14)
Woofer magnet	High density flux ferrite
Tweeter magnet	Neodymium
Woofer cone	Pressed-pulp cone with cotton fibers
Tweeter dome	Tetolon
Crossover type	2 Way Passive Crossover
Crossover cut off	4 kHz

Power Handling - Peak W	230
Power Handling - ContinuousW	115
Impedance ?	3
Frequency response Hz	45 ÷ 22,5k
Sensitivity dB SPL	93
Voice coil Ø mm (in.)	25 (1)
Woofer size mm (in.)	165 (6.5)
Tweeter size mm (in.)	29 (1.14)
Woofer magnet	High density flux ferrite
Tweeter magnet	Neodymium
Woofer cone	Pressed-pulp cone with cotton fibers
Tweeter dome	Tetolon
Crossover type	2 Way Passive Crossover
Crossover cut off	4 kHz
