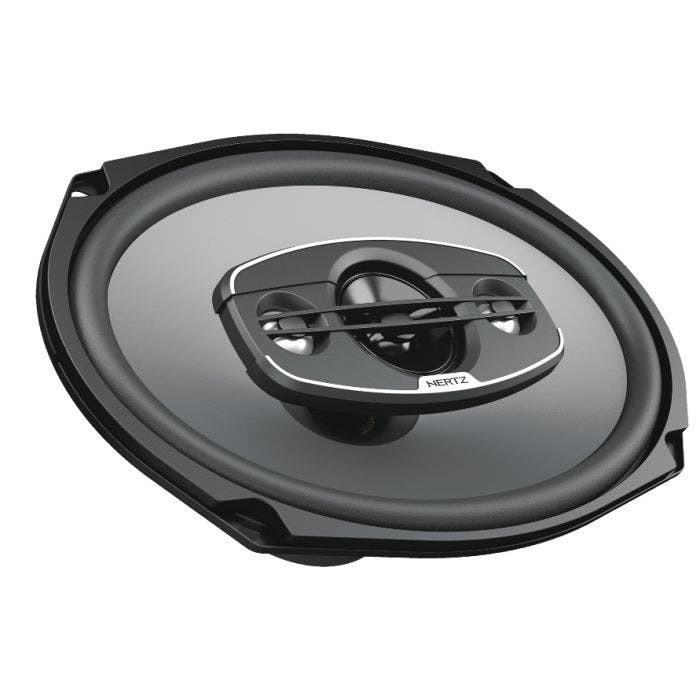

Hertz Uno X 690 340W 4 Ohm 2-Way 6x9 Coaxial Speaker Driver & Tweeter System Set
For our fans seeking strong emotions who have a 6”x9” OEM setup, Hertz offers the X 690, a 4 way monster with a power handling of 340 W. The double 15 mm piezoelectric super-tweeter with PEI dome extends the frequency response above 20 kHz, maximizing the stereo image.
1. Double 15 mm piezoelectric super-tweeter with PEI dome to extend the frequency response above 20 kHz.
2. 40 mm PEI tweeter with ferrite motor, for a brilliant reproduction of mid-high frequencies and compactness.
3. Tweeter and super-tweeter faceplate optimized for exceptional off-axis performance.
4. High stiffness metallic-grey finish pressed-paper cone with water-repellent treatment.
5. Foam surround combining high sensitivity and deep bass response.
6. Pure copper 25mm (1 in.) voice coil woofer for high dynamic power handling.
7. High flux density 80mm (3.15 in.) ferrite magnet for a powerful undistorted sound.
8. Easy-to-install DIN size basket protected by abrasion-resistant dust paint.
For our fans seeking strong emotions who have a 6”x9” OEM setup, Hertz offers the X 690, a 4 way monster with a power handling of 340 W. The double 15 mm piezoelectric super-tweeter with PEI dome extends the frequency response above 20 kHz, maximizing the stereo image.
1. Double 15 mm piezoelectric super-tweeter with PEI dome to extend the frequency response above 20 kHz.
2. 40 mm PEI tweeter with ferrite motor, for a brilliant reproduction of mid-high frequencies and compactness.
3. Tweeter and super-tweeter faceplate optimized for exceptional off-axis performance.
4. High stiffness metallic-grey finish pressed-paper cone with water-repellent treatment.
5. Foam surround combining high sensitivity and deep bass response.
6. Pure copper 25mm (1 in.) voice coil woofer for high dynamic power handling.
7. High flux density 80mm (3.15 in.) ferrite magnet for a powerful undistorted sound.
8. Easy-to-install DIN size basket protected by abrasion-resistant dust paint.
| Brand | Hertz Audio | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Finish | N/A | ||||||||||||||||||||||||||||||
| Manufacturer Part No. | X 690 | ||||||||||||||||||||||||||||||
| Fitment |
|
||||||||||||||||||||||||||||||
| Additional Notes | CC | ||||||||||||||||||||||||||||||
| Ships Within: | 5-7 Days |
| Power Handling - Peak W | 340 |
| Power Handling - Continuous W | 85 |
| Impedance ? | 4 |
| Frequency response Hz | 45 ÷ 22k |
| Sensitivity dB SPL | 94 |
| Woofer size mm (in.) | 6 x 9 |
| Tweeter size mm (in.) | 40 (1.6) |
| Supertweeter size mm (in.) | 2 x 15 (0.6) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter voice coil Ø mm (in.) | 20 (0.8) |
| Woofer magnet | High density flux ferrite |
| Tweeter magnet | Ferrite |
| Woofer cone | Water-repellent pressed paper |
| Tweeter dome | PEI |
| Supertweeter dome | PEI |
