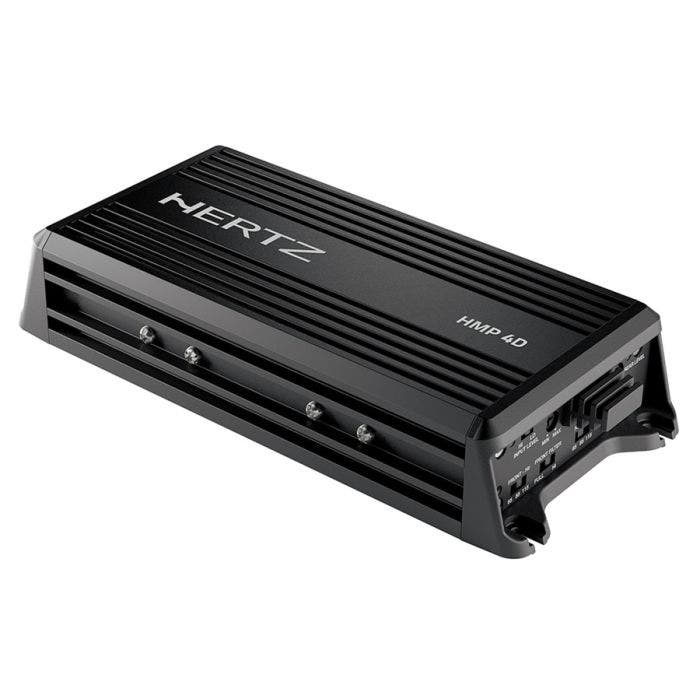

Hertz HMP 4D 4 Channel 300W Compact Powersports & Marine Audio Power Amplifier

Thanks to the ultra-compact cast-aluminium chassis (IP64 rated), the HMP 4D amplifier is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results.

Fits:

Channel mode	4 - 2
Output Power (RMS)  @ 14.4 VDC	60 W x 4 (4 ?) 75 W x 4 (2 ?) 150 W x 2 (4 ?)
Filters Bypass Hi-Pass Lo-Pass	Yes 65-85-115 Hz @ 12 dB/Oct. 65-85-115 Hz @ 12 dB/Oct.
Distortion - THD  (100Hz @ 4Ω)	0.2 %
S/N Ratio  (A weighted @ 1V)	95 dB
Damping factor  (100Hz @ 4Ω)	45
Size W x D x H  mm (in.)	223 x 100,5 x 43,6 / 8.77 x 3.95 x 1.71

Channel mode	4 - 2
Output Power (RMS)  @ 14.4 VDC	60 W x 4 (4 ?) 75 W x 4 (2 ?) 150 W x 2 (4 ?)
Filters Bypass Hi-Pass Lo-Pass	Yes 65-85-115 Hz @ 12 dB/Oct. 65-85-115 Hz @ 12 dB/Oct.
Distortion - THD  (100Hz @ 4Ω)	0.2 %
S/N Ratio  (A weighted @ 1V)	95 dB
Damping factor  (100Hz @ 4Ω)	45
Size W x D x H  mm (in.)	223 x 100,5 x 43,6 / 8.77 x 3.95 x 1.71

All items covered by the manufacter's warranty
