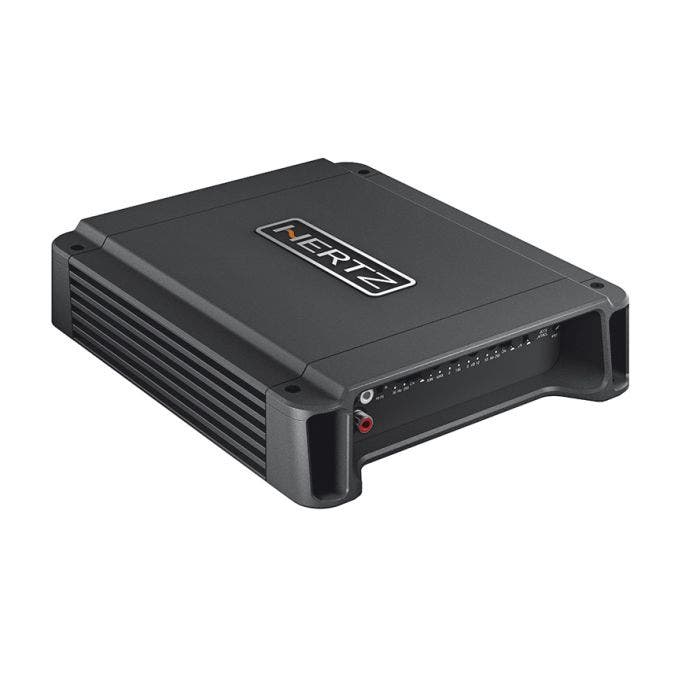

Hertz Compact Power HCP 1D D-Class Mono Amplifier

HCP 1D is a mono D Class car audio amplifier , with an incredibly minimized size heat sink. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. HCP 1D has been designed to work in multiple configurations. More specifically, it features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer. Besides, using the HRC accessory (Hertz Remote Control), the subwoofer volume can be remote controlled with extreme preciseness.

Fits:

Channel mode	1
Output Power (RMS)  @ 14.4 VDC	1 Ch: 380 W x 1 (4 ?) 1 Ch: 700 W x 1 (2 ?)
Filters Bypass Hi-Pass Lo-Pass Band-Pass Subsonic	Yes - 50 ÷ 250 Hz @ 24 dB/Oct. - 25 Hz @ 24 dB/Oct.
Distortion - THD  (100Hz @ 4Ω)	0.2%
S/N Ratio  (A weighted @ 1V)	100 dB
Damping factor  (100Hz @ 4Ω)	80
Size W x D x H  mm (in.)	215 x 190 x 50 (8.46 x 7.48 x 1.97)

Channel mode	1
Output Power (RMS)  @ 14.4 VDC	1 Ch: 380 W x 1 (4 ?) 1 Ch: 700 W x 1 (2 ?)
Filters Bypass Hi-Pass Lo-Pass Band-Pass Subsonic	Yes - 50 ÷ 250 Hz @ 24 dB/Oct. - 25 Hz @ 24 dB/Oct.
Distortion - THD  (100Hz @ 4Ω)	0.2%
S/N Ratio  (A weighted @ 1V)	100 dB
Damping factor  (100Hz @ 4Ω)	80
Size W x D x H  mm (in.)	215 x 190 x 50 (8.46 x 7.48 x 1.97)

All items covered by the manufacter's warranty
