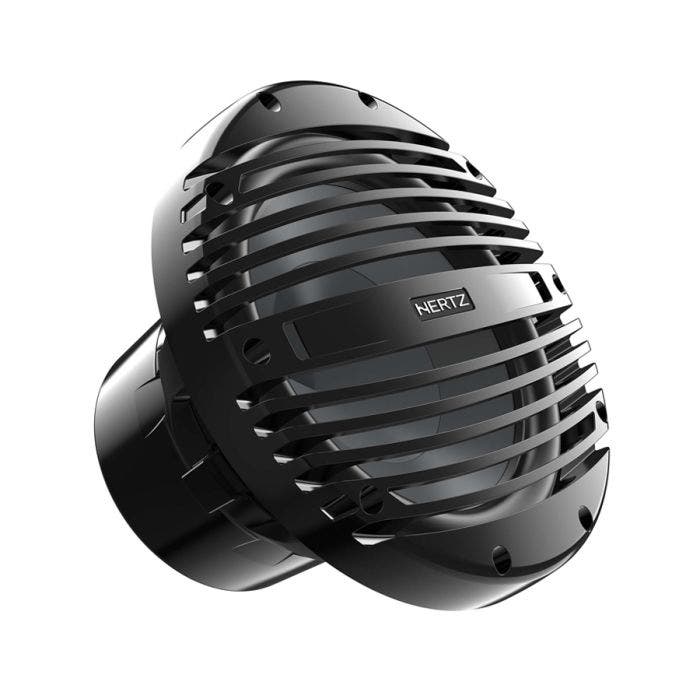

Hertz HMS 10 B-C 500W 4 Ohm Subwoofer Speaker w/ Black Grille Marine Boat UTV

The HMS 10 B long throw 10” marine subwoofer, also available in the black option HMS 10 B-C, is engineered for infinite baffle application. It relieves the main speakers from the hard work of reproducing the lowest frequency range, adding bass output and punch to maximize the overall system performance.

The FEM optimized high-excursion mobile equipment of HMS 10 B with a 50 mm (2”) voice coil is driven by a massive magnetic group, to obtain a perfect control also at very high level SPL. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust ) HMS 10 B is nature-proof. The progressive design aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The gold-plated corrosion resistant brass connection terminals with silicone cap protect the leadwire junction point.

1. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust ).

2. Long-throw 50mm (2”) voice coil woofer engineered for infinite baffle application featuring polypropylene cone injected with UV inhibitors and comolded Santoprene surround.

3. Progressive-design aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.

4. FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.

5. Gold-plated corrosion resistant brass connection terminals with silicone cap protecting leadwire junction point.

Size mm (in.): 250 (10)
Power Handling - Peak W: 500
Power Handling - Continuous W: 250
Impedance Ω: 4
Sensitivity dB SPL: 88
Voice coil Ø mm (in.): 50 (2)
Xmax mm: 13.5
X-mech mm (in.): ±19 (0.75)
Re Ω: 4.5
Fs Hz: 41
Vas l: 37
Qts: 0.71
Qes: 0.76
Qms: 11
Spl dB: 88

All items covered by the manufacter's warranty
