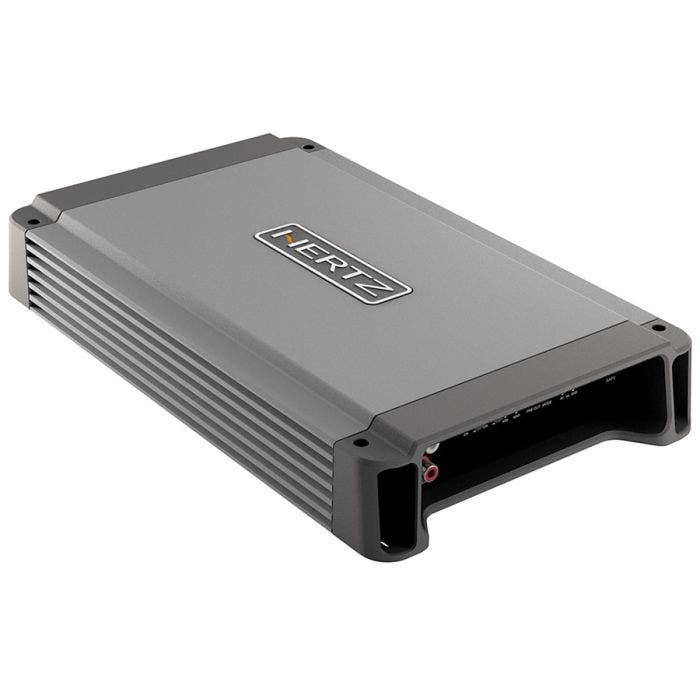

Hertz HCP 4M Marine 4 Channel Amplifier Boat Offroad UTV Weather 12V Audio Power
HCP 4M four channels marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power. The HCP M heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier.
Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results. The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies. The HCP 4 M fourchannel model features also an extended frequency range filter, which can be used when designing active 2-way speaker systems.
HCP 4M four channels marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power. The HCP M heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier.
Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results. The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies. The HCP 4 M fourchannel model features also an extended frequency range filter, which can be used when designing active 2-way speaker systems.
Brand | Hertz Audio | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Finish | N/A | ||||||||||||||
Manufacturer Part No. | HCP 4M | ||||||||||||||
Fitment |
|
||||||||||||||
Additional Notes | CC | ||||||||||||||
Ships Within: | 5-7 Days |
Channel mode | 4 - 3 - 2 |
Output Power (RMS) @ 14.4 VDC |
4 Ch: 65 W x 4 (4 ?) 4 Ch: 95 W x 4 (2 ?) 3 Ch: 65 W x 2 (4 ?) + 190 W x 1 (4 ?) 3 Ch: 95 W x 2 (2 ?) + 190 W x 1 (4 ?) 2 Ch: 190 W x 2 (4 ?) |
Filters Bypass Hi-Pass Lo-Pass Band-Pass |
Yes A/B: 80 Hz @ 12 dB/Oct. A/B: 50 ÷ 500 Hz @ 12 dB/Oct. - |
Distortion - THD (100Hz @ 4Ω) |
0.01% |
S/N Ratio (A weighted @ 1V) |
103 dB |
Damping factor (100Hz @ 4Ω) |
120 |
Size W x D x H mm (in.) |
315 x 190 x 50 (12.40 x 7.48 x 1.97) |
All items covered by the manufacter's warranty
CC
-
