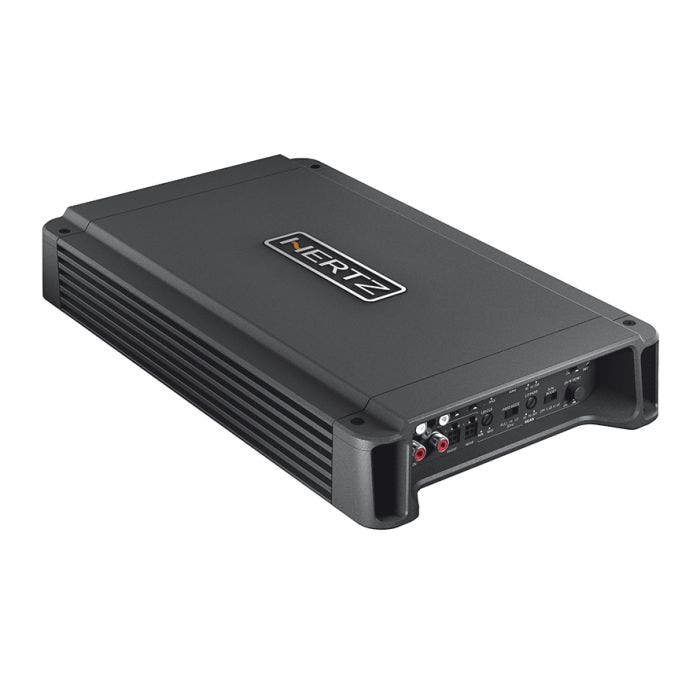

Hertz Compact Power HCP 4 AB-Class Four Channel Amplifier

HCP 4 is a four channels car audio amplifier designed to reproduce any musical genres with four separate channels for multiple configurations. Pre-amplified (Pre-In) inputs and high-level (Speaker-In) inputs allow for connection with any head units. Built to work both in mono, as part of a three-channel system with sub and front, and in stereo for a powerful two-channel system, HCP 4 is a unique model in terms of versatility! All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

Fits:

Channel mode	4 - 3 - 2
Output Power (RMS)  @ 14.4 VDC	4 Ch: 65 W x 4 (4 ?) 4 Ch: 95 W x 4 (2 ?) 3 Ch: 65 W x 2 (4 ?) + 190 W x 1 (4 ?) 3 Ch: 95 W x 2 (2 ?) + 190 W x 1 (4 ?) 2 Ch: 190 W x 2 (4 ?)
Filters Bypass Hi-Pass Lo-Pass Band-Pass	Yes A/B: 80 Hz @ 12 dB/Oct. A/B: 50 ÷ 500 Hz @ 12 dB/Oct. -
Distortion - THD  (100Hz @ 4Ω)	0.01%
S/N Ratio  (A weighted @ 1V)	103 dB
Damping factor  (100Hz @ 4Ω)	120
Size W x D x H  mm (in.)	315 x 190 x 50 (12.40 x 7.48 x 1.97)

Channel mode	4 - 3 - 2
Output Power (RMS)  @ 14.4 VDC	4 Ch: 65 W x 4 (4 ?) 4 Ch: 95 W x 4 (2 ?) 3 Ch: 65 W x 2 (4 ?) + 190 W x 1 (4 ?) 3 Ch: 95 W x 2 (2 ?) + 190 W x 1 (4 ?) 2 Ch: 190 W x 2 (4 ?)
Filters Bypass Hi-Pass Lo-Pass Band-Pass	Yes A/B: 80 Hz @ 12 dB/Oct. A/B: 50 ÷ 500 Hz @ 12 dB/Oct. -
Distortion - THD  (100Hz @ 4Ω)	0.01%
S/N Ratio  (A weighted @ 1V)	103 dB
Damping factor  (100Hz @ 4Ω)	120
Size W x D x H  mm (in.)	315 x 190 x 50 (12.40 x 7.48 x 1.97)

All items covered by the manufacter's warranty
