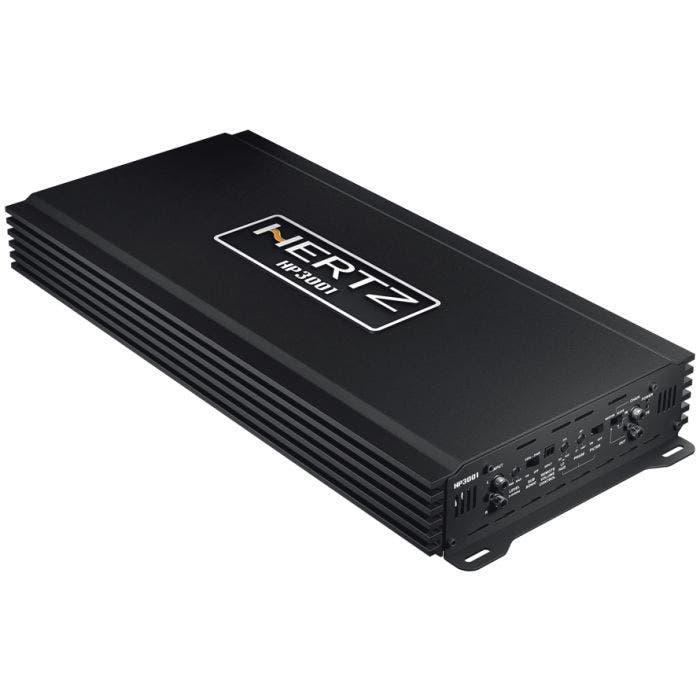

Hertz SPL Show D-Class Mono Amplifier w/ Crossover HP3001
$1,350.00
Only 1 left
SKU
HZ-HP3001
HP 3001 is a D Class mono spl car audio amplifier, able to provide 6000W power for the subwoofer, and ensuring terrific performance if two of these amps are used to drive the front woofers (up to 500 Hz).
The design of the printed circuit boards, the components featured on the output stage have been designed to comply with strict requirements of reliability, power and thermal dissipation.
The wide array of possible setups, with by-passable Lo-Pass filter (24 dB/Oct. slope), subsonic filter, phase control and remote volume control, provides the ability to set HP 3001 in different systems; also, thanks to a Chain Mode function to cascade a second amplifier into a single load, 7200W power can be achieved with very high SPL levels.
HP 3001 is a D Class mono spl car audio amplifier, able to provide 6000W power for the subwoofer, and ensuring terrific performance if two of these amps are used to drive the front woofers (up to 500 Hz).
The design of the printed circuit boards, the components featured on the output stage have been designed to comply with strict requirements of reliability, power and thermal dissipation.
The wide array of possible setups, with by-passable Lo-Pass filter (24 dB/Oct. slope), subsonic filter, phase control and remote volume control, provides the ability to set HP 3001 in different systems; also, thanks to a Chain Mode function to cascade a second amplifier into a single load, 7200W power can be achieved with very high SPL levels.
Fits:
Fits:
Channel mode | 1 |
Output Power (RMS) @ 14.4 VDC |
1 Ch: 1200 W x 1 (4 Ω) 1 Ch: 2000 W x 1 (2 Ω) 1 Ch: 3000 W x 1 (1 Ω) |
Filters Hi-Pass |
50 ÷ 400 Hz @ 24 dB/Oct. |
Distortion - THD (100Hz @ 4Ω) |
0.1 % |
S/N Ratio (A weighted @ 1V) |
96 dB |
Damping factor (100Hz @ 4Ω) |
150 |
Size W x D x H mm (in.) |
544 x 240 x 65,5 (21.41 x 9.45 x 2.55) |
Brand | Hertz Audio | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Finish | N/A | ||||||||||||||
Manufacturer Part No. | HP 3001 | ||||||||||||||
Fitment |
|
||||||||||||||
Additional Notes | CC | ||||||||||||||
Ships Within: | 5-7 Days |
Channel mode | 1 |
Output Power (RMS) @ 14.4 VDC |
1 Ch: 1200 W x 1 (4 Ω) 1 Ch: 2000 W x 1 (2 Ω) 1 Ch: 3000 W x 1 (1 Ω) |
Filters Hi-Pass |
50 ÷ 400 Hz @ 24 dB/Oct. |
Distortion - THD (100Hz @ 4Ω) |
0.1 % |
S/N Ratio (A weighted @ 1V) |
96 dB |
Damping factor (100Hz @ 4Ω) |
150 |
Size W x D x H mm (in.) |
544 x 240 x 65,5 (21.41 x 9.45 x 2.55) |
All items covered by the manufacter's warranty
