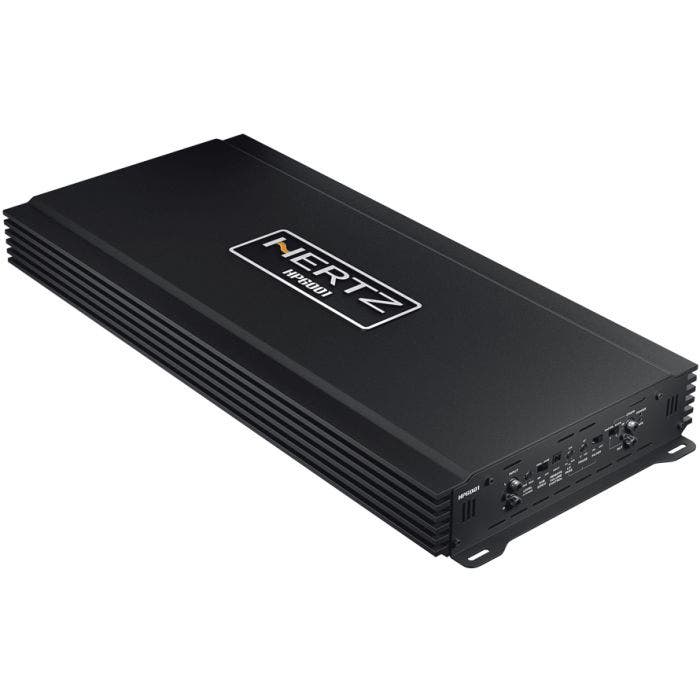

Hertz SPL Show D-Class Mono Amplifier w/ Crossover HP6001

HP 6001 is the most powerful spl car audio amplifier within the SPL Show line. The overbuilt power supply stage and the D Class output stage featuring 12 Mosfets provide the ability to deliver up to 6000W power. The wide array of possible setups, with by-passable Lo-Pass filter (24 dB/Oct. slope), subsonic filter, phase control and remote volume control, make HP 6001 an extremely powerful amplifier, perfect for SPL applications. Thanks to the Chain Mode function, to cascade a second amplifier into a single load, a devastating amount of power up to 12000W can be achieved with record SPL levels.

Fits:

Channel mode	1
Output Power (RMS)  @ 14.4 VDC	1 Ch: 1670 W x 1 (4 Ω) 1 Ch: 2970 W x 1 (2 Ω) 1 Ch: 5000 W x 1 (1 Ω)
Filters Lo-Pass	50 ÷ 400 Hz @ 24 dB/Oct.
Distortion - THD  (100Hz @ 4Ω)	0.1 %
S/N Ratio  (A weighted @ 1V)	86 dB
Damping factor  (100Hz @ 4Ω)	500
Size W x D x H  mm (in.)	644 x 280 x 65,5 (25.35 x 11.02 x 2.55)

Channel mode	1
Output Power (RMS)  @ 14.4 VDC	1 Ch: 1670 W x 1 (4 Ω) 1 Ch: 2970 W x 1 (2 Ω) 1 Ch: 5000 W x 1 (1 Ω)
Filters Lo-Pass	50 ÷ 400 Hz @ 24 dB/Oct.
Distortion - THD  (100Hz @ 4Ω)	0.1 %
S/N Ratio  (A weighted @ 1V)	86 dB
Damping factor  (100Hz @ 4Ω)	500
Size W x D x H  mm (in.)	644 x 280 x 65,5 (25.35 x 11.02 x 2.55)

All items covered by the manufacter's warranty
