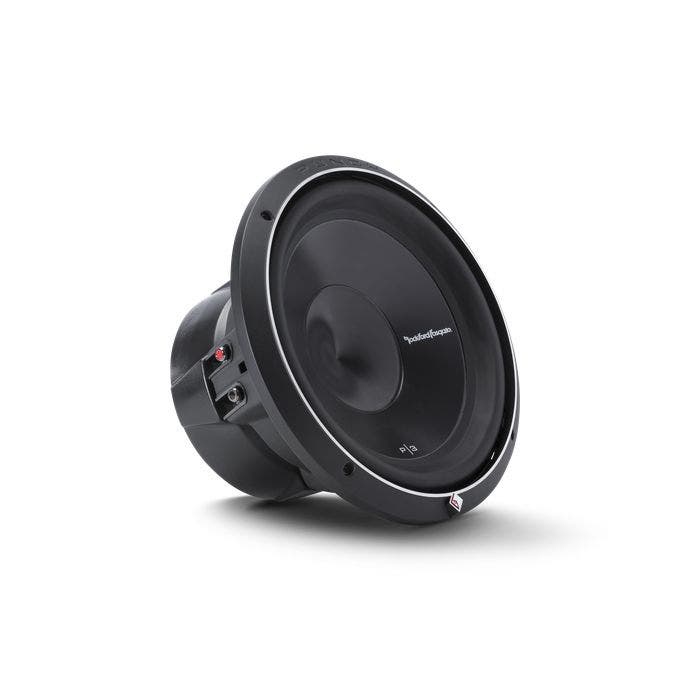

Rockford Fosgate Punch 12" P3 4-Ohm DVC Subwoofer Speaker P3D4-12

$279.99
Out of stock
SKU
RF-P3D4-12a

The P3D4-12 is the best performing Rockford Fosgate Punch series subwoofer for cars and trucks. The P3 12” features Dual 4-Ohm voice coils, 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring. The P3D4-12 12-inch dual subwoofer also includes:

The P3D4-12 12-inch subwoofer is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

  • Custom 10-AWG nickel plated push terminals
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Extended pole piece and bumped vented backplate
  • Anodized aluminum cone and dustcap
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Protective PVC textured magnet cover
  • Diamond cut cast aluminum trim ring with optional grille
  • StampCast basket with integrated spider venting
  • 1 Year Warranty
Speaker Connector
Dual 10 AWG compression
Shipping Weight
20.9 Lbs. (9.48 kg)
SPL (dB @ 1w/1m)
85
CEA-2031 Compliant
CEA-2031 Guidelines
Fs (Hz)
27.7
Qes
0.57
Qms
5.60
Cutout Diameter
11.25 in. (285 mm)
Xmax (mm)
15.9
Le (mH)
6.94
Size
12"
Nominal Impedance
Dual 4-Ohm
Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max
Magnet Weight (oz)
96 oz. (2.73 kg.)
Voice Coil Diameter
2.5" (65.5 mm)
Mounting Depth
6.66 in. (169.3 mm)
Qts
0.52
Vas (Liters)
57.7
Re (Ohms)
6.40
Woofer Displacement
0.106 cu. ft. (3.0 Liters)
Sd (cm2)
570
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb)
1.79 cu. ft. (50.6 Liters)

The P3D4-12 is the best performing Rockford Fosgate Punch series subwoofer for cars and trucks. The P3 12” features Dual 4-Ohm voice coils, 600 Watts RMS of power handling, and accommodates a grille insert using the included cast aluminum trim ring. The P3D4-12 12-inch dual subwoofer also includes:

The P3D4-12 12-inch subwoofer is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

  • Custom 10-AWG nickel plated push terminals
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Extended pole piece and bumped vented backplate
  • Anodized aluminum cone and dustcap
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Protective PVC textured magnet cover
  • Diamond cut cast aluminum trim ring with optional grille
  • StampCast basket with integrated spider venting
  • 1 Year Warranty
Speaker Connector
Dual 10 AWG compression
Shipping Weight
20.9 Lbs. (9.48 kg)
SPL (dB @ 1w/1m)
85
CEA-2031 Compliant
CEA-2031 Guidelines
Fs (Hz)
27.7
Qes
0.57
Qms
5.60
Cutout Diameter
11.25 in. (285 mm)
Xmax (mm)
15.9
Le (mH)
6.94
Size
12"
Nominal Impedance
Dual 4-Ohm
Power Handling (Watts RMS)
600 Watts RMS
1200 Watts Max
Magnet Weight (oz)
96 oz. (2.73 kg.)
Voice Coil Diameter
2.5" (65.5 mm)
Mounting Depth
6.66 in. (169.3 mm)
Qts
0.52
Vas (Liters)
57.7
Re (Ohms)
6.40
Woofer Displacement
0.106 cu. ft. (3.0 Liters)
Sd (cm2)
570
Subwoofer Type
Standard
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb)
1.79 cu. ft. (50.6 Liters)

More Information
Brand Rockford Fosgate
Wattage 1200 watts
Manufacturer Part No. P3D4-12
Fitment 12v
Additional Notes cc
