Feuling 1459 Race Series 508 Grind Camshaft Cam Kit Harley Milwaukee M8 17-Up

$699.95
Only 1 left
SKU
FMC-1459

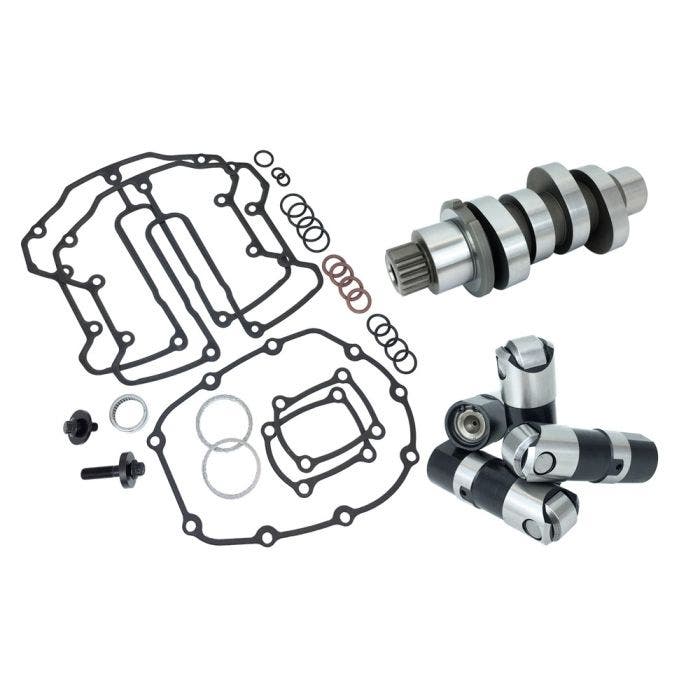

FEULING® camshaft kits for Milwaukee Eight engines include chain drive camshaft, lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one piece pushrods and or our optional and recommended heavy duty HP+® 0.165 wall one piece pushrods - see part# FMC-4087

Feuling fastener kit part# FMC-3047 is also highly recommend to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs.

RACE SERIES® kits come with RACE SERIES® lifters.

508 CAM - The Grim Reaper Aggressive pulling power with a nasty sound. This camshaft revs up faster than the 521 grind, sounds nastier and pulls harder but is more difficult to tune. The REAPER 508 grind will shine in 114 and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. FEULING recommends matching this cam with our RACE SERIES oiling system part# FMC-7097. High lift valve springs are required, see FEULING BEEHIVE valve spring kit part# FMC-1107 and part# FMC-1108. Heavy duty pushrods are highly recommended see part# FMC-4087

RPM range 2,250 - 6,250. Grind: 508

Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
Intake .508 21.5 BTDC 36 ABDC 231 .180 97.5
Exhaust .511 45 BBDC 9 ATDC 243 .146 104.25
Overlap: 30.5

Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio

FEULING® camshaft kits for Milwaukee Eight engines include chain drive camshaft, lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one piece pushrods and or our optional and recommended heavy duty HP+® 0.165 wall one piece pushrods - see part# FMC-4087

Feuling fastener kit part# FMC-3047 is also highly recommend to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs.

RACE SERIES® kits come with RACE SERIES® lifters.

508 CAM - The Grim Reaper Aggressive pulling power with a nasty sound. This camshaft revs up faster than the 521 grind, sounds nastier and pulls harder but is more difficult to tune. The REAPER 508 grind will shine in 114 and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. FEULING recommends matching this cam with our RACE SERIES oiling system part# FMC-7097. High lift valve springs are required, see FEULING BEEHIVE valve spring kit part# FMC-1107 and part# FMC-1108. Heavy duty pushrods are highly recommended see part# FMC-4087

RPM range 2,250 - 6,250. Grind: 508

Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
Intake .508 21.5 BTDC 36 ABDC 231 .180 97.5
Exhaust .511 45 BBDC 9 ATDC 243 .146 104.25
Overlap: 30.5

Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio

More Information
Brand Feuling
Manufacturer Part No. 1459
Fitment
  • 2017-Up Harley-Davidson Miwaukee Eight 114 and Larger Engines
Additional Notes BI
Ships Within: 10+ Days

  • 2017-Up Harley-Davidson Miwaukee Eight 114 and Larger Engines

Manufacture's Warranty

BI
