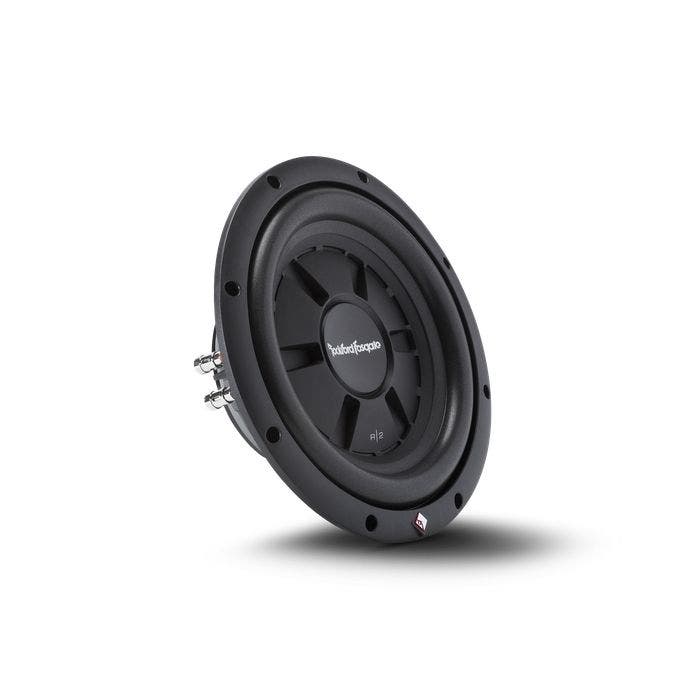

Rockford Fosgate Prime 10" R2 4-Ohm DVC Shallow Subwoofer Speaker R2SD4-10

$159.99
Out of stock
SKU
RF-R2SD4-10

When you have no space for bass, our Prime R2SD4-10 shallow subwoofer will satisfy your need. This 10” subwoofer handles 200 Watts RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations.

When you have no space for bass, our R2 10" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.

  • 12 AWG compression terminals
  • Anodized aluminum voice coil former
  • Optimized for sealed enclosures
  • Mica injected polypropylene cone
  • Linear spider with embedded 16 AWG tinsel leads
  • StampCast basket with integrated spider venting
  • Integrated PVC trim ring
  • Shallow Motor Assembly
  • 1 Year Warranty
Magnet Weight (oz)
45 oz. 1.28 kg.
Size
10"
Nominal Impedance
Dual 4-Ohm
Mounting Depth
3.417 in. (86 mm)
SPL (dB @ 1w/1m)
82.5
Fs (Hz)
39.3
Vas (Liters)
21.7
Cutout Diameter
9.125 in. (232 mm)
Xmax (mm)
8.0
Re (Ohms)
6.60
Le (mH)
4.2
Sd (cm2)
333
Power Handling (Watts RMS)
200 Watts RMS
400 Watts Max
Voice Coil Diameter
2" (50 mm)
Speaker Connector
Dual 12 AWG compression
Shipping Weight
10.588 Lbs. (4.80 kg.)
Qts
0.73
Qes
0.81
Woofer Displacement
0.037 cu. ft. (1.05 Liters)
Qms
7.00
Subwoofer Type
Shallow
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.7 cu. ft. (19.8 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)

When you have no space for bass, our Prime R2SD4-10 shallow subwoofer will satisfy your need. This 10” subwoofer handles 200 Watts RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations.

When you have no space for bass, our R2 10" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.

  • 12 AWG compression terminals
  • Anodized aluminum voice coil former
  • Optimized for sealed enclosures
  • Mica injected polypropylene cone
  • Linear spider with embedded 16 AWG tinsel leads
  • StampCast basket with integrated spider venting
  • Integrated PVC trim ring
  • Shallow Motor Assembly
  • 1 Year Warranty
Magnet Weight (oz)
45 oz. 1.28 kg.
Size
10"
Nominal Impedance
Dual 4-Ohm
Mounting Depth
3.417 in. (86 mm)
SPL (dB @ 1w/1m)
82.5
Fs (Hz)
39.3
Vas (Liters)
21.7
Cutout Diameter
9.125 in. (232 mm)
Xmax (mm)
8.0
Re (Ohms)
6.60
Le (mH)
4.2
Sd (cm2)
333
Power Handling (Watts RMS)
200 Watts RMS
400 Watts Max
Voice Coil Diameter
2" (50 mm)
Speaker Connector
Dual 12 AWG compression
Shipping Weight
10.588 Lbs. (4.80 kg.)
Qts
0.73
Qes
0.81
Woofer Displacement
0.037 cu. ft. (1.05 Liters)
Qms
7.00
Subwoofer Type
Shallow
Voice Coil Type
Dual Voice Coil
Sealed Box Volume (Vb)
0.7 cu. ft. (19.8 Liters)
Vented Box Volume (Vb)
1.4 cu. ft. (39.6 Liters)
