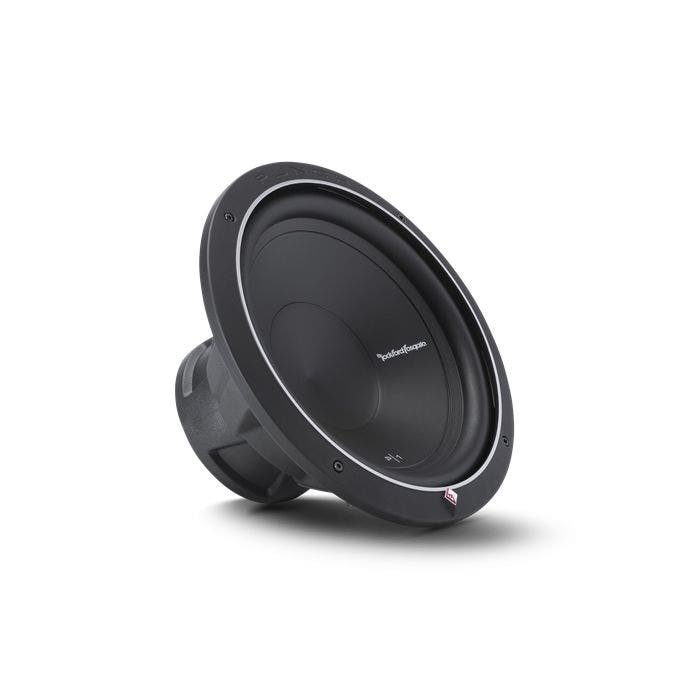

Rockford Fosgate Punch 12" P1 2-Ohm SVC Subwoofer Speaker P1S2-12

$109.99
SKU
RF-P1S2-12

Rockford Fosgate P1 12” is the first in a family of famous “Punch” subwoofers. The P1S2-12 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.

Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

  • Linear spider with embedded 16 AWG tinsel leads
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Kevlar fiber reinforced paper cone
  • StampCast basket with integrated spider venting
  • Rubberized ABS trim ring with optional grille
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • Protective PVC textured magnet cover
  • 1 Year Warranty
Size
12"
Subwoofer Type
Standard
Nominal Impedance
2-Ohm
Speaker Connector
Dual 10 AWG compression
Power Handling (Watts RMS)
250 Watts RMS
500 Watts Max
Voice Coil Diameter
2.0" (51.6 mm)
Magnet Weight (oz)
45 oz. (1.28 kg.)
Re (Ohms)
1.8
Voice Coil Type
Single Voice Coil
Sd (cm2)
548
Vas (Liters)
88.3
Qts
0.55
Qes
0.84
Qms
3.39
Le (mH)
1.17
Fs (Hz)
25
Xmax (mm)
9.0
SPL (dB @ 1w/1m)
86
SPL (dB @ 2.8v/1m)
89
Cutout Diameter
11.22 in. (285 mm)
Mounting Depth
6.0 in. (152.4 mm)
Woofer Displacement
0.081 cu. ft. (2.3 Liters)
Sealed Box Volume (Vb)
1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb)
1.79 cu. ft. (50.6 Liters)
Shipping Weight
12.5 Lbs. (5.66 Kg)

Rockford Fosgate P1 12” is the first in a family of famous “Punch” subwoofers. The P1S2-12 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.

Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.

  • Linear spider with embedded 16 AWG tinsel leads
  • High-temp voice coil with spun-laced Nomex® re-inforcement collar
  • Kevlar fiber reinforced paper cone
  • StampCast basket with integrated spider venting
  • Rubberized ABS trim ring with optional grille
  • Custom 10-AWG nickel plated push terminals
  • Extended pole piece and bumped vented backplate
  • Protective PVC textured magnet cover
  • 1 Year Warranty
Size
12"
Subwoofer Type
Standard
Nominal Impedance
2-Ohm
Speaker Connector
Dual 10 AWG compression
Power Handling (Watts RMS)
250 Watts RMS
500 Watts Max
Voice Coil Diameter
2.0" (51.6 mm)
Magnet Weight (oz)
45 oz. (1.28 kg.)
Re (Ohms)
1.8
Voice Coil Type
Single Voice Coil
Sd (cm2)
548
Vas (Liters)
88.3
Qts
0.55
Qes
0.84
Qms
3.39
Le (mH)
1.17
Fs (Hz)
25
Xmax (mm)
9.0
SPL (dB @ 1w/1m)
86
SPL (dB @ 2.8v/1m)
89
Cutout Diameter
11.22 in. (285 mm)
Mounting Depth
6.0 in. (152.4 mm)
Woofer Displacement
0.081 cu. ft. (2.3 Liters)
Sealed Box Volume (Vb)
1.02 cu. ft. (28.8 Liters)
Vented Box Volume (Vb)
1.79 cu. ft. (50.6 Liters)
Shipping Weight
12.5 Lbs. (5.66 Kg)
